MasterLine 10

The window system for low energy builds

MasterLine 10 windows are designed for the building trends of today and tomorrow: low energy building, maximum daylight access, superb performances and safe homes (up to burglar resistance class 3).

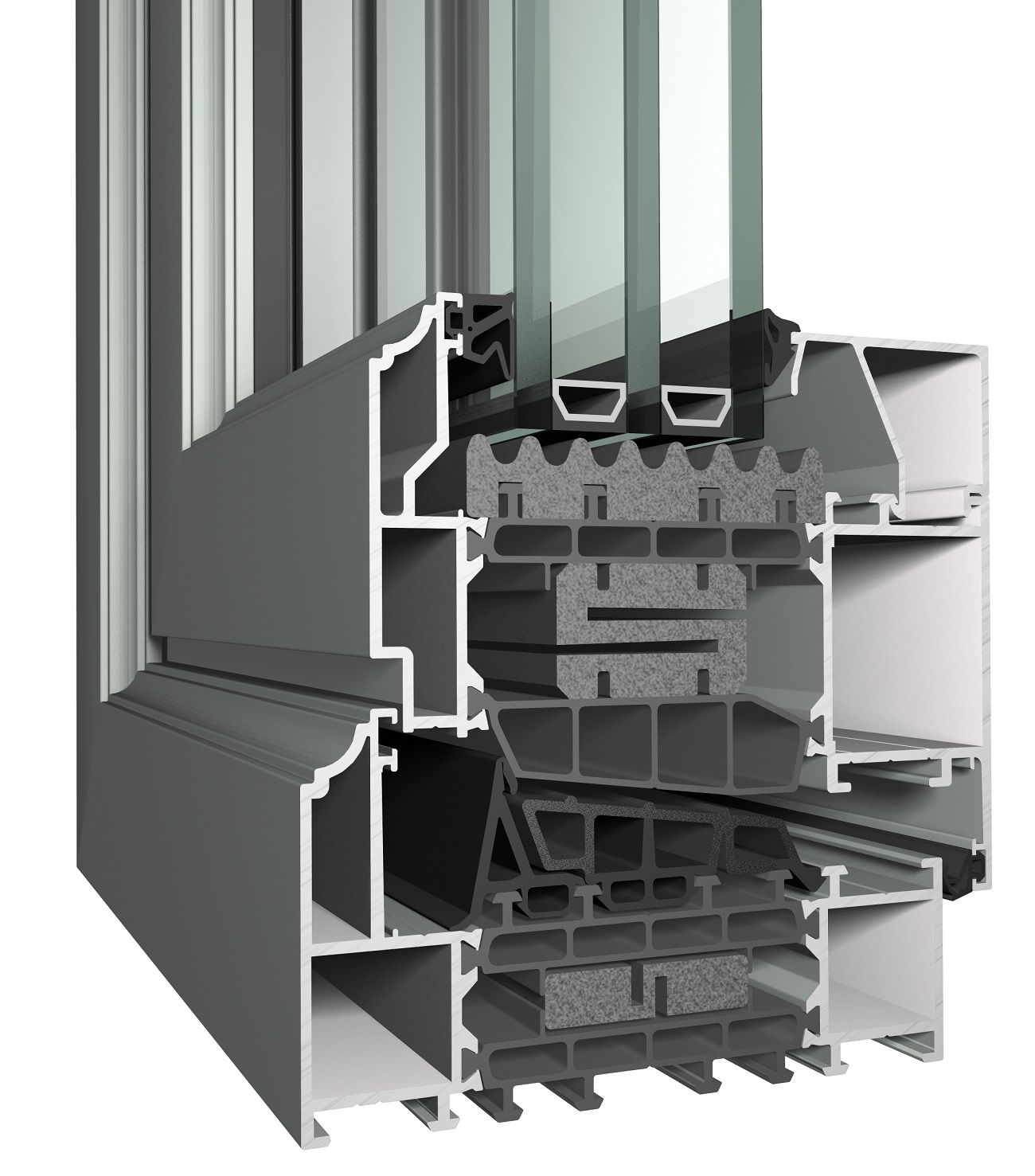

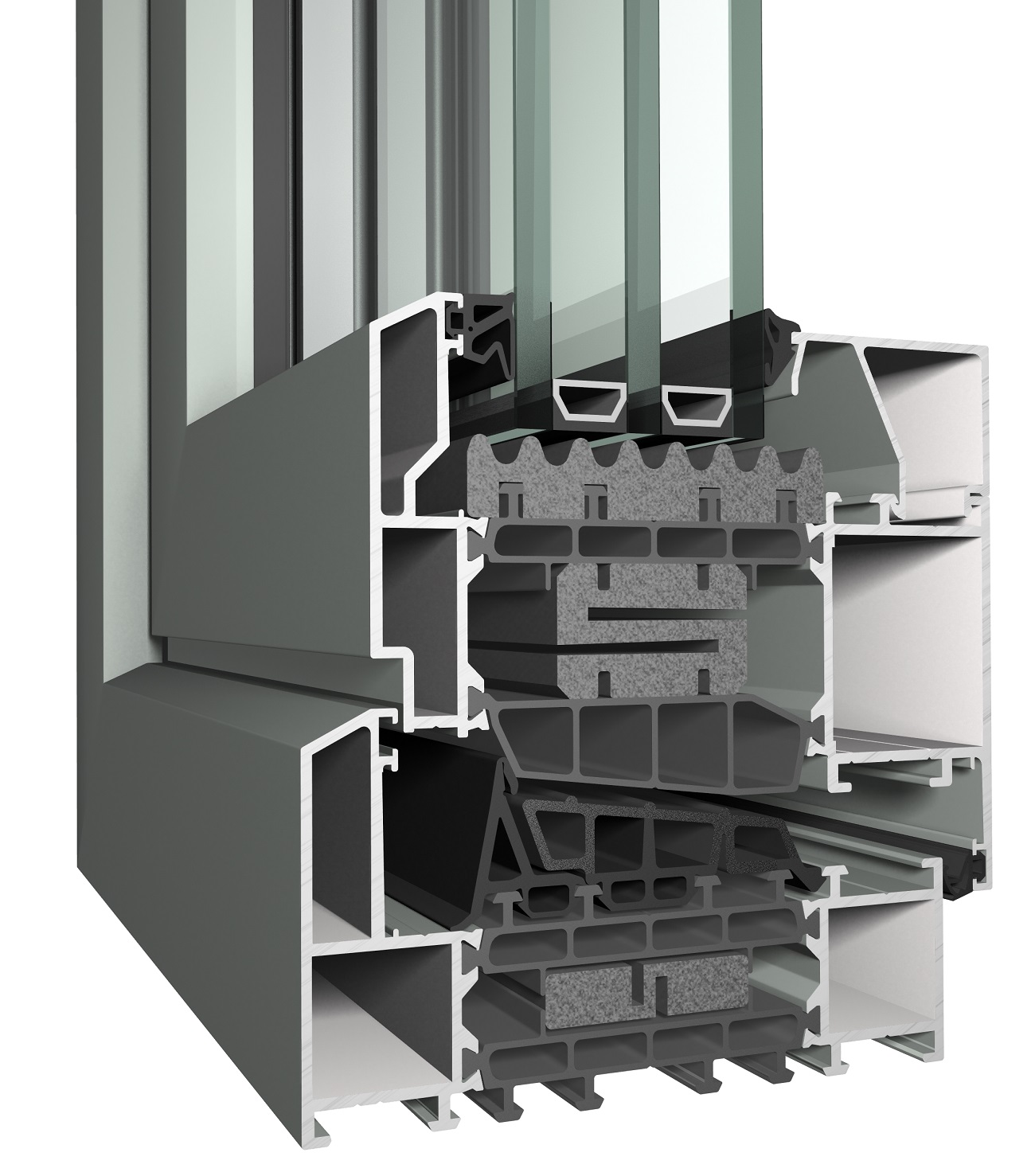

The product offering of MasterLine 10 windows is truly unique in its applicability: a full range of transoms and frames, connection profiles with Sliding and Curtain Wall system, but also the design freedom that is offered with the Renaissance and Deco profile range. The windows are offered with a Passive Housing certificate!

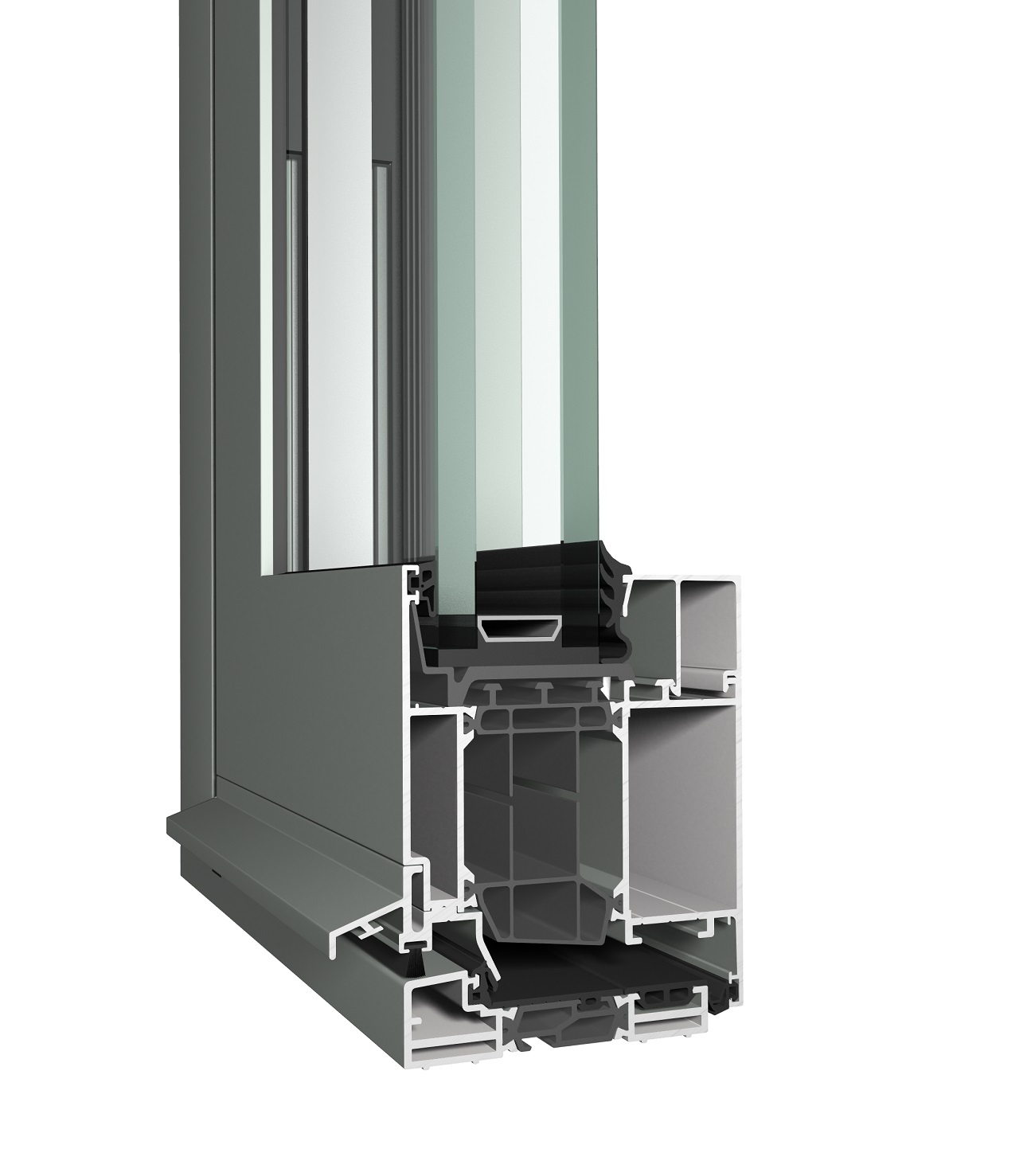

MasterLine 10 uses many of the same articles as in MasterLine 8 windows: corner cleats, glazing gaskets and also the same central gasket ensuring the same performances, production efficiency and robustness

All above makes MasterLine 10 the ideal solution for domestic as well as public projects.

Properties

Min. Visible width frame: inward opening  60 mm

Min. Visible width vent: inward opening  37 mm

Min. Visible width frame-vent: inward opening  104 mm

Min. Visible width frame: outward opening  27 mm

Min. Visible width frame-vent: outward opening  140 mm

Min. Visible width T-profile  87 mm

Max. height vent  2800 mm

Max. width vent  1200 mm

Max. weight vent (element)  200 kg

Overall system depth frame  97 mm

Overall system depth vent  107 mm

Rebate height  27 mm

Min. Glass thickness  20 mm

Max. Glass thickness  78 mm

Min. Glass thickness vent  30 mm

Max. Glass thickness vent  88 mm

Performance

Comfort

Air tightness max. test pressure  4 (600 Pa)

Water tightness  E900 (900 Pa)

Wind load resistance  C5 (2000 Pa)

Acoustic performance  46 (-1;-4) for TuTi, 44 (-2;-4) for DC dB

Safety

Burglar resistance  RC2/WK2

                              RC3/WK3

Energy

Thermal insulation (Uf)  119mm: 0,90 W/m²K
