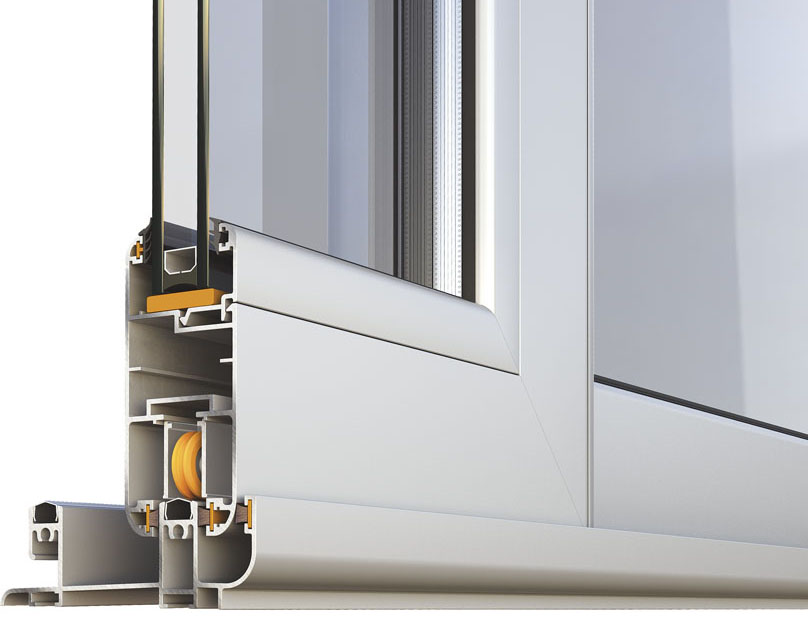

Alumil M9200

M9200 is a non insulated sliding system with curved shape.

38 mm sash width
Supports single or double glazing up to 20 mm thickness and sash weight up to 120 kg
Suitable for any typology of sliding doors and windows which can also be combined with sliding shutters or/and fly screens
Stainless steel rails offering smooth and easy scrolling of the sashes
Two points locking hardware for a higher security level

PROFILE CHARACTERISTICS
Frame width	84 mm
Sash width	38 mm
Minimum visible height of construction	102,2 mm
Sash mechanism weight limit	80 Kg
Maximum glass thickness	20 mm
Cross section thickness	up to 1,6

SYSTEM CHARACTERISTICS
Type of system	Uninsulated
Uf	from 6,94 W/m2K
Exterior aesthetics	Curved
Sliding Type	Slide
Type of thermal insulation	-
Mechanism	GU Inline
Typologies	Double horizontal sliding sash Triple horizontal sliding sash Two double horizontal sliding sashes with meeting point Corner construction with doublehorizontal sliding sash Corner construction with sliding sash into wall cavity Single sliding sash into wall cavity Double sliding sash into wall cavity with meeting point
