Elvial EL 5600 i²

It covers the particular needs of architects, with exceptional level of watertightness and wind pressure until 450 Pa for certified double sash frame in the largest dimensions 2.33m x 2.33m (10 Beaufort storm with 89-102 km/h wind speed, causing important damage). Excellent thermal insulation and sound reduction. Certified burglary resistance of WK2 category.

HIGH THERMAL INSULATION

  • Uf : 1.7-2.4 W/m2K
  • Uw*: 1.6 W/m2K with double glazing (Ug 1.0)
  • Uw*: 1.3 W/m2K with triple glazing (Ug 0.6)

Insulation levels:

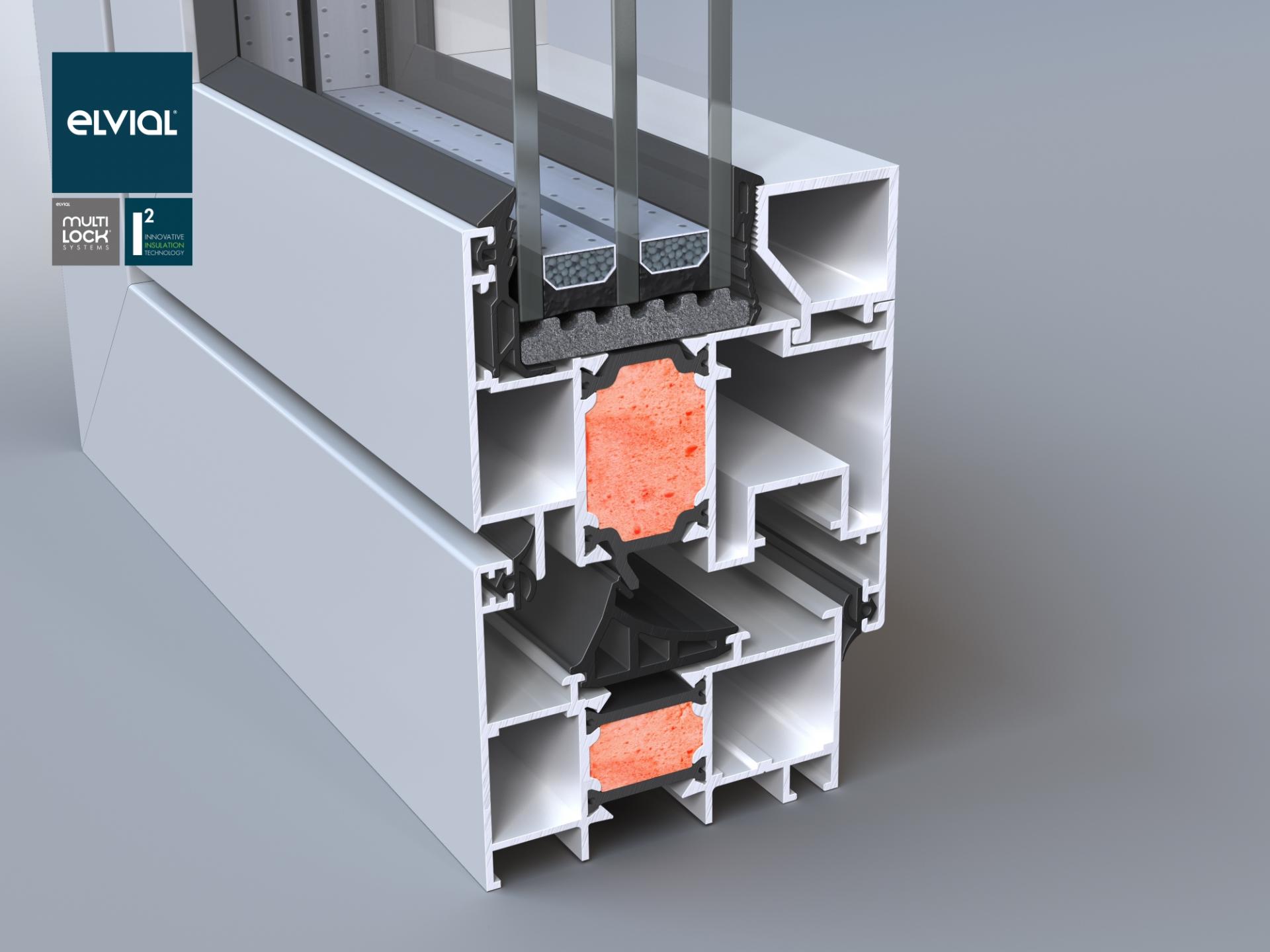

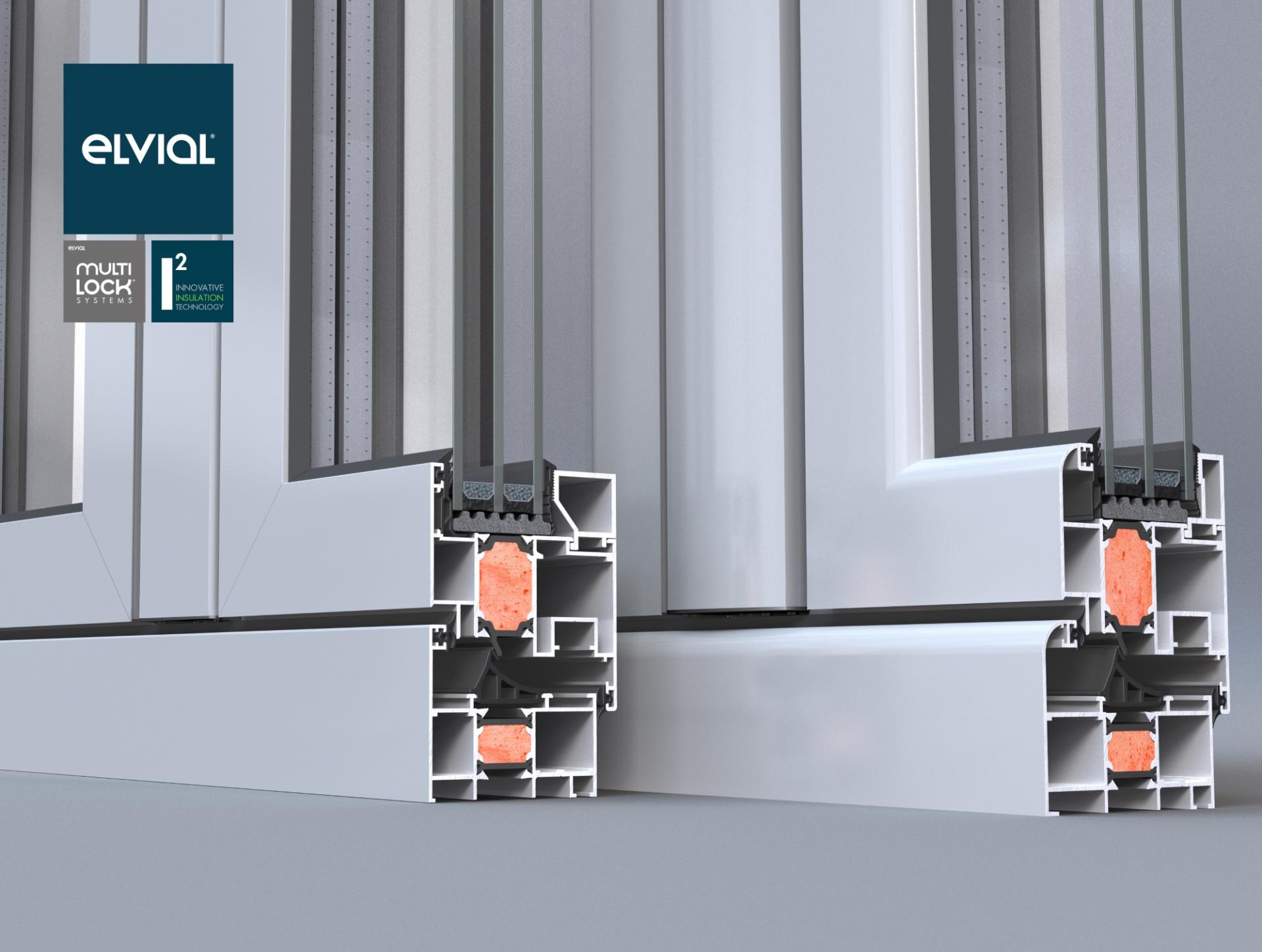

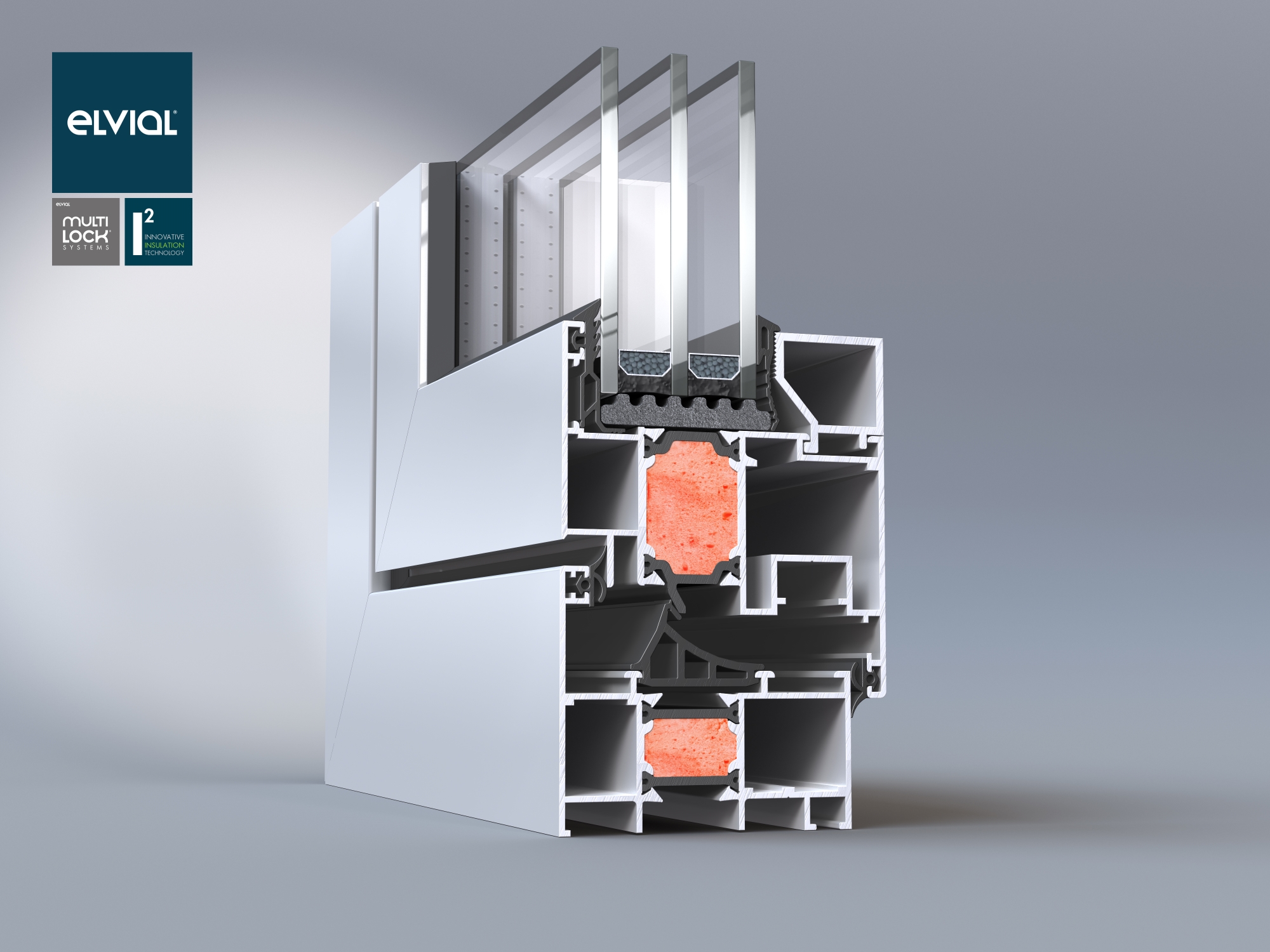

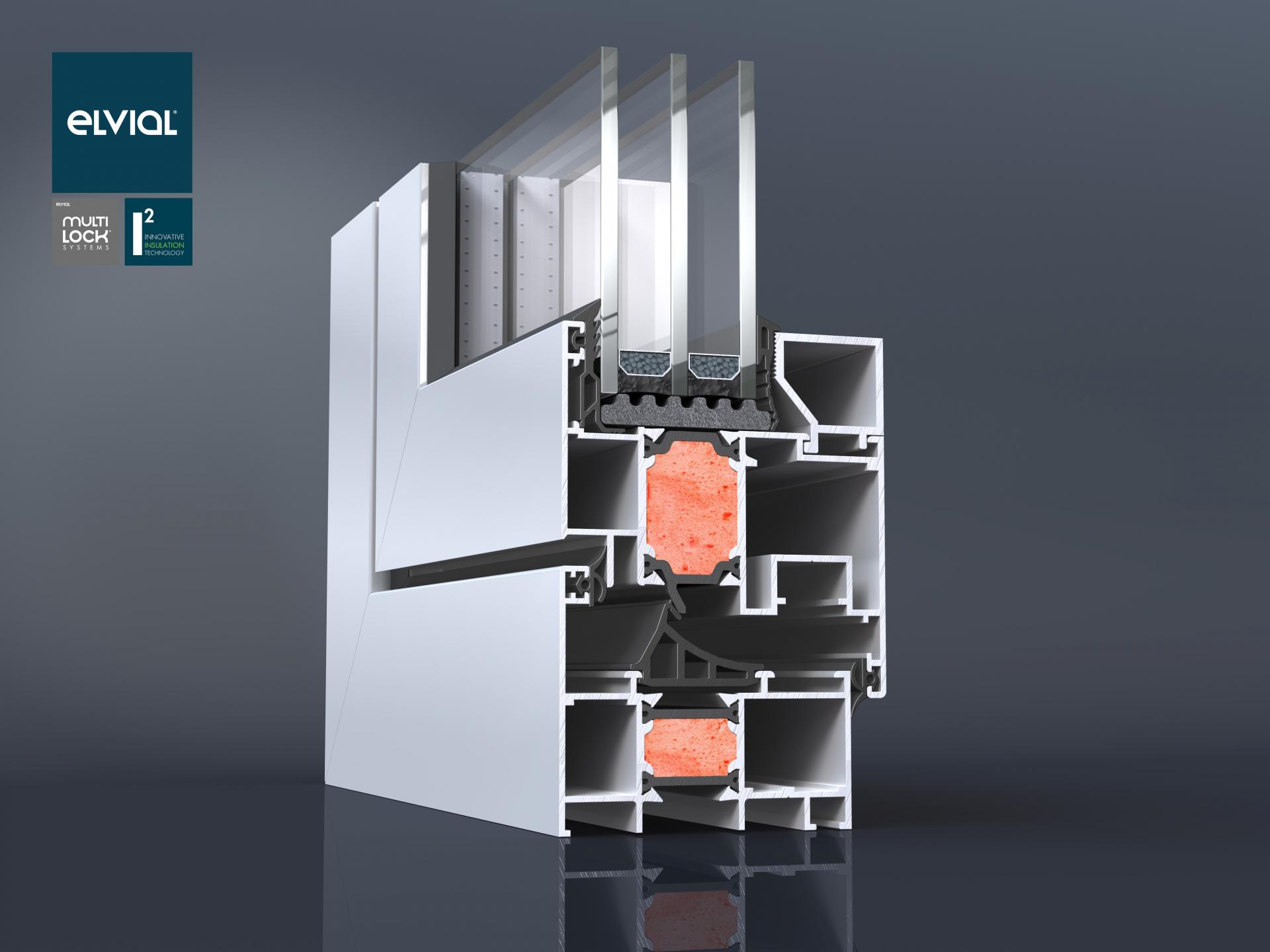

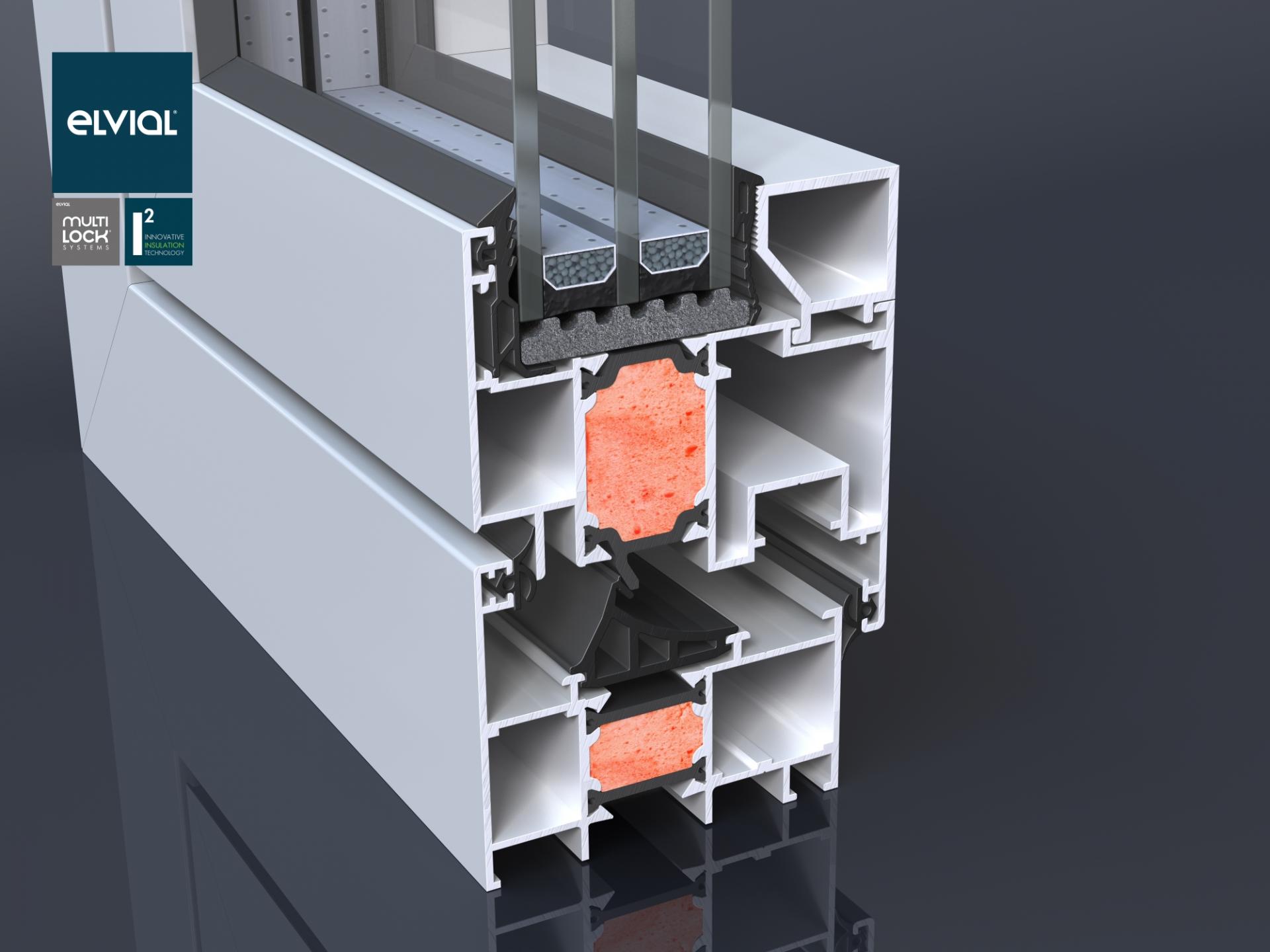

  • Optimized foam-filled insulation zone (ELVIAL I2 Technology) that ensures excellent isothermal flow of the window.
  • Specially designed central gasket with 5 cavities that covers all the polyamide surface, glazing gaskets with fins and perimetrical insulationwith low density polyethylene, for effective heat transfer minimization.

SECURITY

  • Water tightness: 900Pa in single sash with fixed sub-light (13 Beaufort cyclone)
  • WK2 Security Level, with up to 21 locking points around the window



DURABILITY FOR A LIFETIME

  • up to 130 kg width /sash
  • up to 2.350mm height
  • up to 1.350mm /sash
  • up to 53mm glazing
  • Basic Depth 66.9 mm / 75.2 mm
  • Min Face Width F-S 108.2 mm

Perfect functionality:

  • Corner Joints with specially designed recesses to fasten the hinge pinsabsorbing the glazing weight and ensuring long lasting operation of the final product.
  • Innovative Mullion End Cap made of TPV+EPDM to seal perfectly onto the profile, ensuring excellent watertightness.
  • EPDM Gasket Corners for the central gasket and the outer glazing gasket.
  • Special drainage channels on the frame and on the sash, which prevent water from flowing inside the inner part of the profile.



*Single Sash window1.400mm x 1.400mm
