CP 130 (-LS)

Aesthetic functionality

Concept Patio® 130 is a highly insulated slide and lift-slide system, which meets the highest requirements with regard to insulation, stability and safety. The system perfectly links up to the CS 77 and MasterLine 8 series.

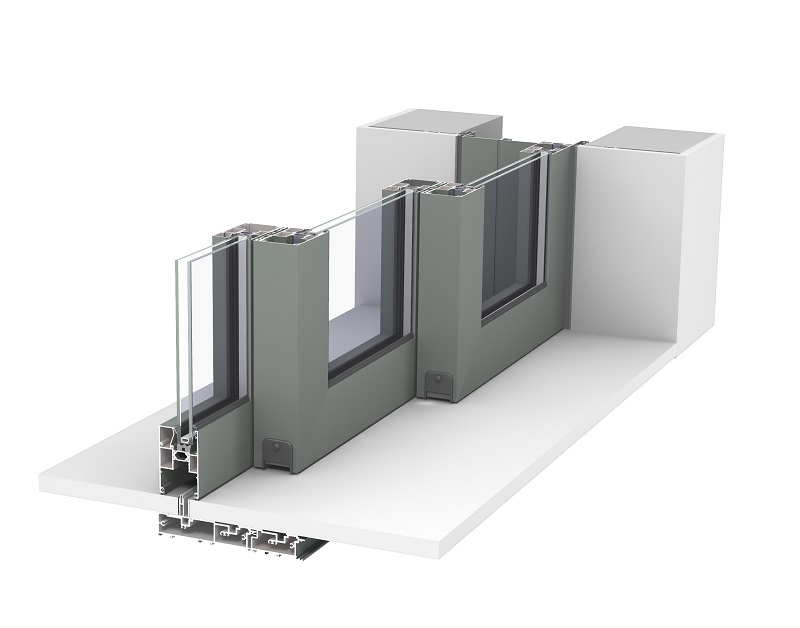

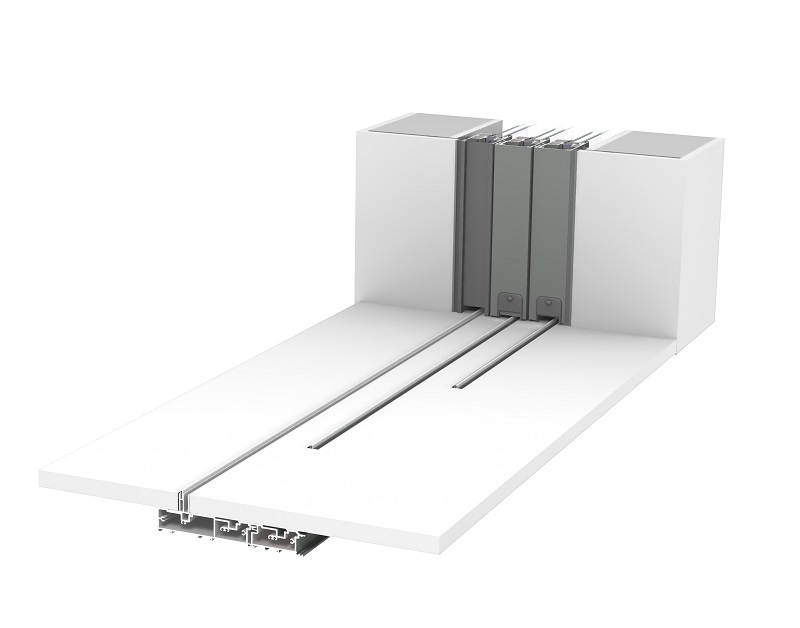

CP 130 is available with various opening possibilities and the low threshold option offers a solution to improve the buildings accessibility. A special corner solution makes it possible to open up spaces without any fixed corner element, creating a perfect and clear continuity between the indoor and outdoor spaces. This makes CP 130 ideal for rooms with a view.

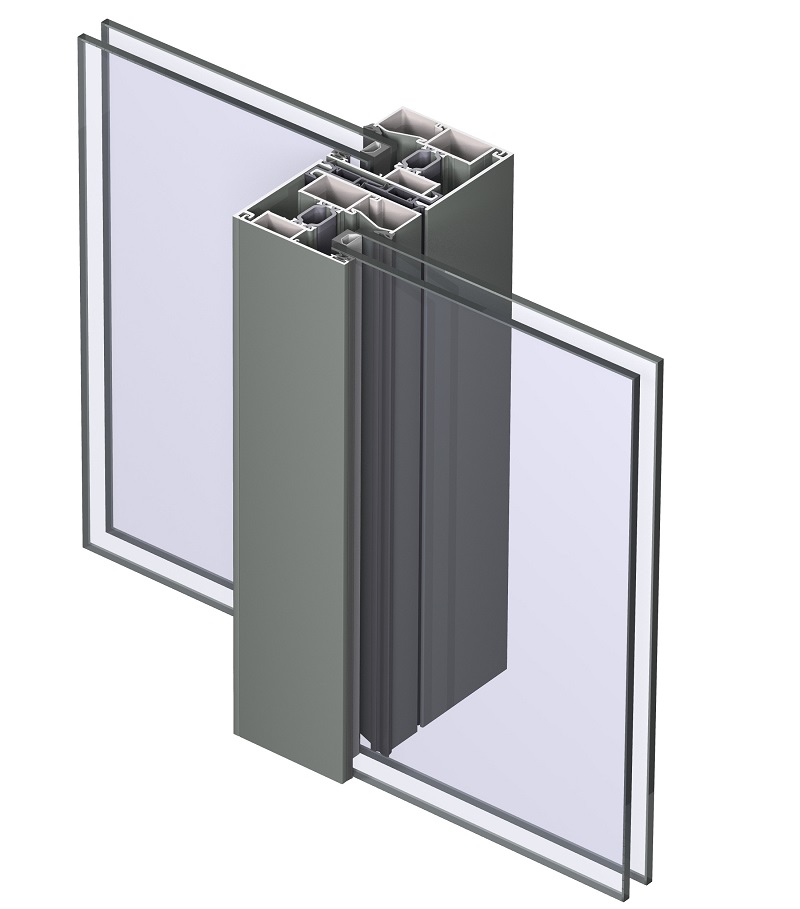

This robust system allows the construction of large and stable sliding windows and doors with a vent weight up to 300 kg. It also offers an aesthetical slimline middle section. Additionally, CP 130 can comply with burglar resistance class 2, offering a safe and secure solution.


Min. Visible width T-profile  76 mm

Visible width meeting section  50 mm

Max. height vent  2700 mm

Max. width vent  2700 mm

Max. weight vent (element)  400 kg

Overall system depth frame  130 mm

Overall system depth vent  59 mm

Rebate height  25 mm

Visible height vent  94 mm

Visible height meeting section 4 doors  194 mm

Min. Glass thickness  4 mm

Max. Glass thickness  43 mm

Glazing methodDry glazing with EPDM or neutral silicones

Thermal breakFibreglass Reinforced Polyamide Strips



Air tightness max. test pressure  4 (600 Pa)

Water tightness  E750 (750 Pa)

Wind load resistance  B5 (2000 Pa)

Acoustic performance  Rw (C; Ctr) = 39 (-1;-3) dB


Burglar resistance  RC2/WK2


Thermal insulation (Uf)  2.35 W/m²K
