Alumil Comfort M14000

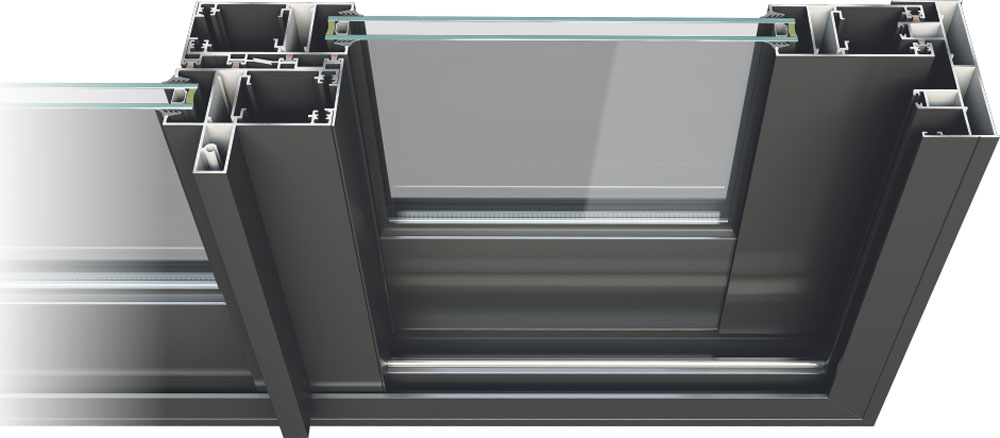

M14000 is a complete non thermal-break system for sliding doors and windows, with a large variety of profiles. Among other features, special design can be achieved thanks to 90o cuttings and by minimizing the visible aluminium frame of the interlocking profile.



  • 38 mm sash width
  • Stainless steel rails offering smooth and easy scrolling of the sashes

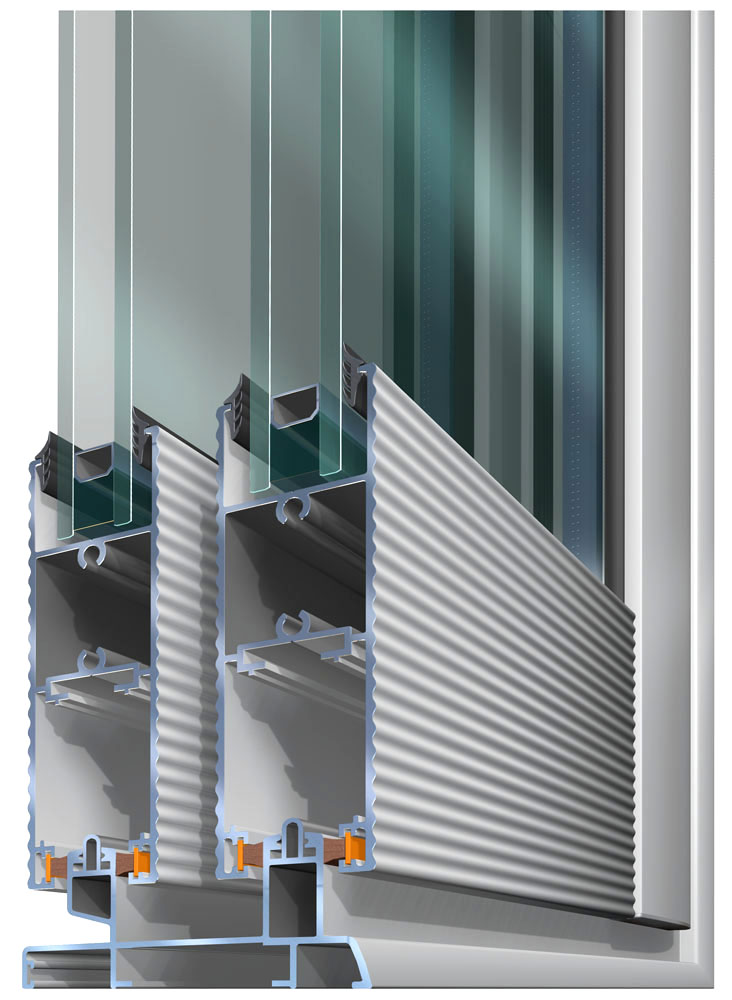

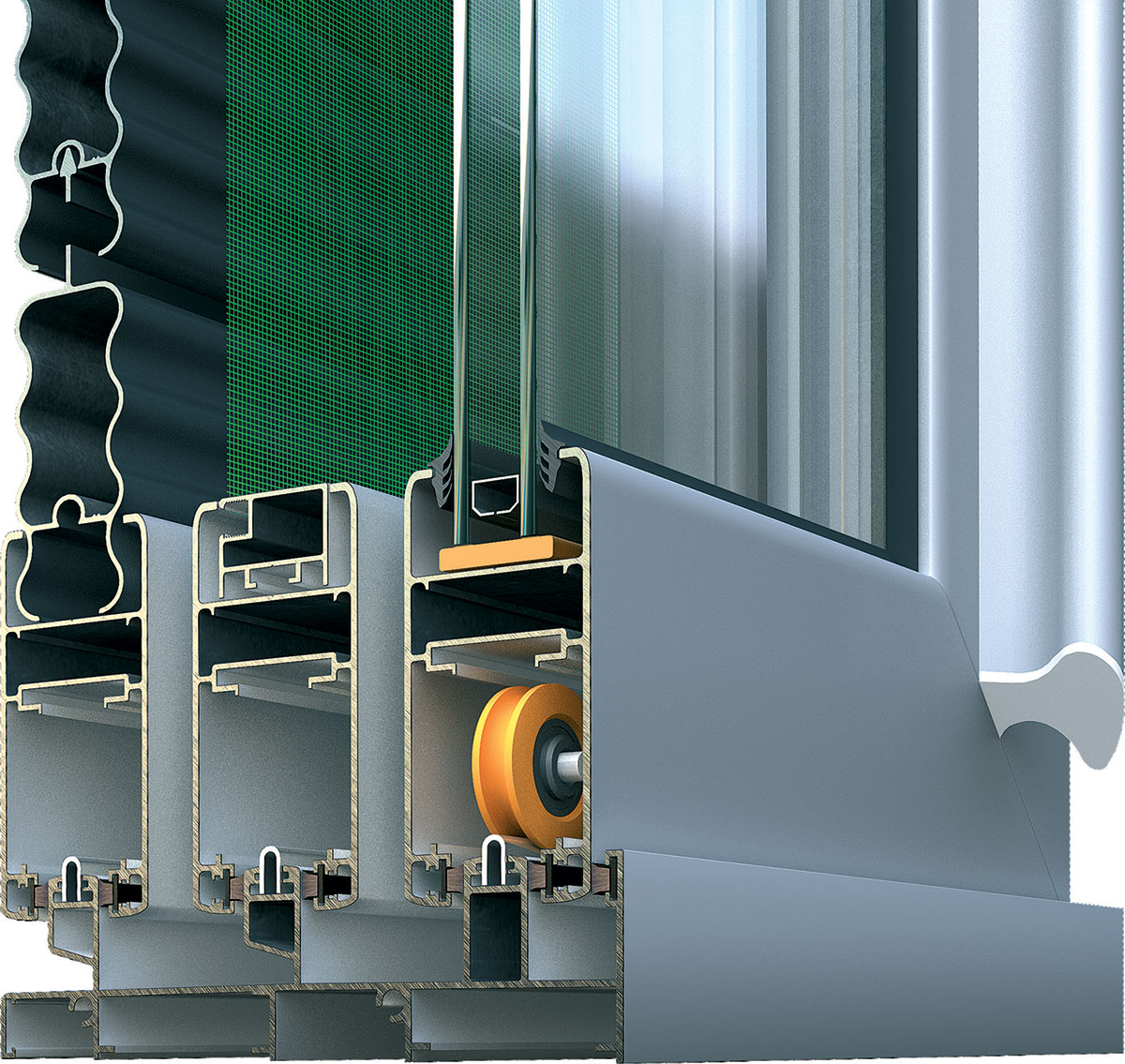

  • Suitable for any typology of sliding doors and windows which can also be combined with sliding shutters or/and fly screens
  • Pocket doors also available
  • Multipoint locking hardware for a higher security level

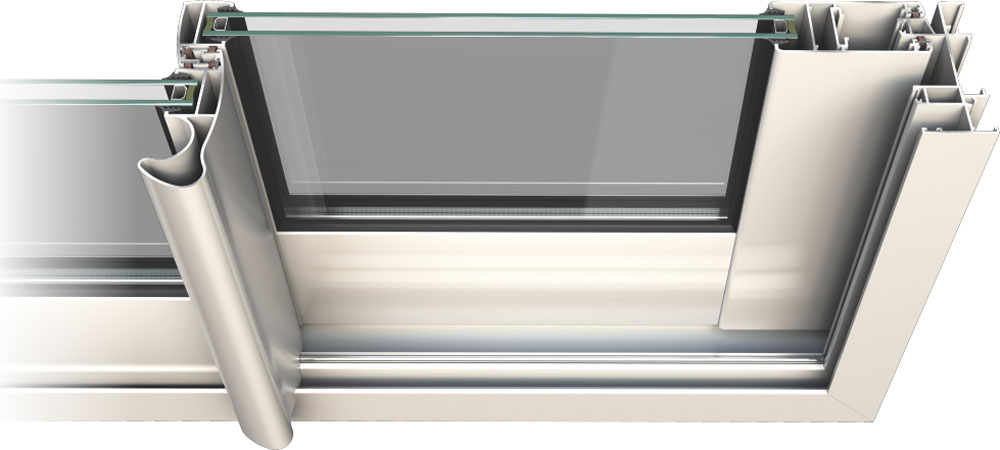

  • Interlocking face width profile of only 27 mm for maximum visibility for double sash

PROFILE CHARACTERISTICS

Frame width

92 mm

Sash width

38 mm

Minimum visible height of construction

111,8 mm

Sash mechanism weight limit

120 Kg

Maximum glass thickness

26 mm

Cross section thickness

up to 1,5



 SYSTEM CHARACTERISTICS

Type of system

Uninsulated

Uf

6,76 W/m2K

Exterior aesthetics

Curved

Sliding Type

Slide

Type of thermal insulation

-

Mechanism

GU Inline

Typologies

Double horizontal sliding sash
Triple horizontal sliding sash
Two double horizontal sliding sashes with meeting point
Corner construction with doublehorizontal sliding sash
Corner construction with sliding sash into wall cavity
Single sliding sash into wall cavity
