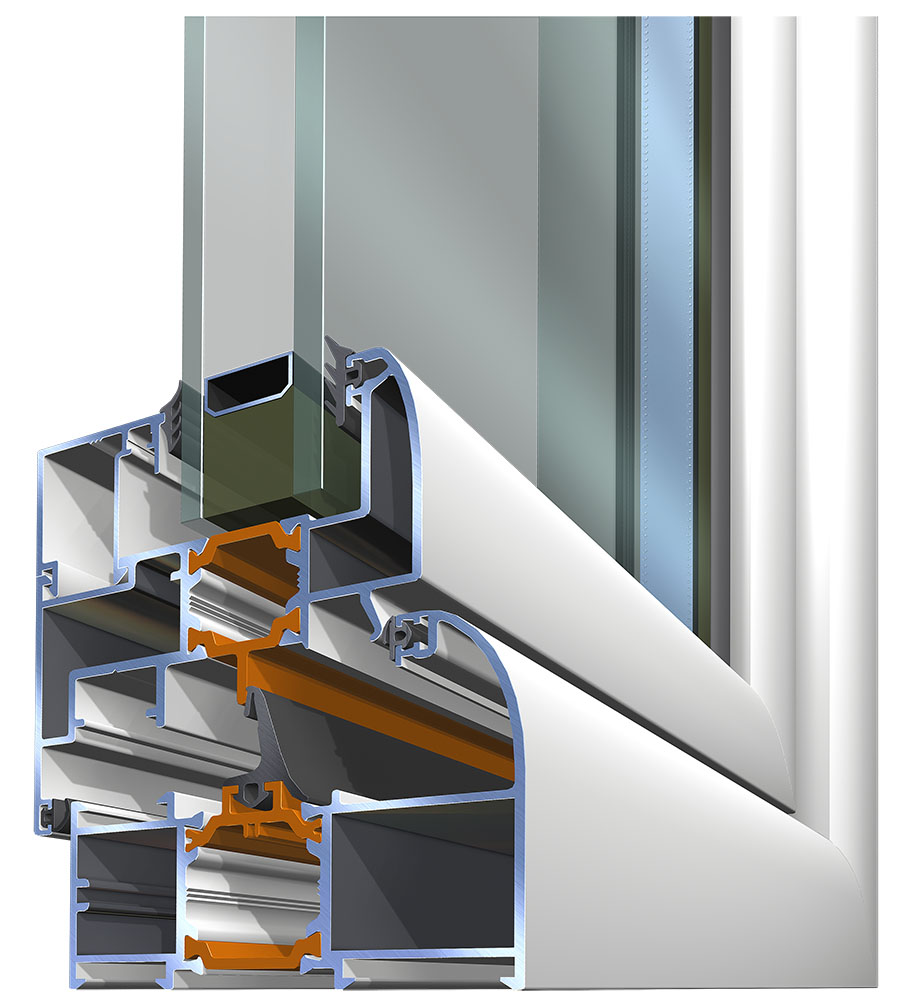

Alumil Comfort Μ20000

Μ20000 is tilt and turn opening system with thermal break which exclusively combines with stainless steel (PVC groove) hardware. This system offers satisfying thermal insulation and enhanced security level.

  • Basic depth of system 62.5mm
  • Stainless steel mechanism of 16mm with security locking bolts (mushroom shape) can be easily installed with valuable time savings
  • Special reinforcement in the frame profiles for screwing and supporting the hinges
  • Appropriate distance of 4mm between the sash and the frame for continuous application of sealing gaskets even behind the hinges
  • Glass reinforced polyamide (24mm in the frames and 20mm in the sashes) which offers increased thermal insulation (Uf =2,7-3,0 W/m2K)
  • Glass thickness up to 44mm and sash weight up to 130kg


Frame depth

62,5 mm

Sash depth

70,5 mm

Minimum visible width

106 mm

Minimum visible width (Τ-profile)

86 mm

Sash mechanism weight limit

130 Kg

Glass thickness

up to 46 mm

Cross section thickness

1,4 - 1,6



Type of system



2,7 – 3,0 W/m2K

Exterior aesthetics

Flat, Curved, Classic

Glazing method

Aluseal system

Type of thermal insulation

24 mm polyamide


Steel mechanism 16mm


Tilt & Turn
Single leave entrance door,
Projected outwards,
Folding doors,
