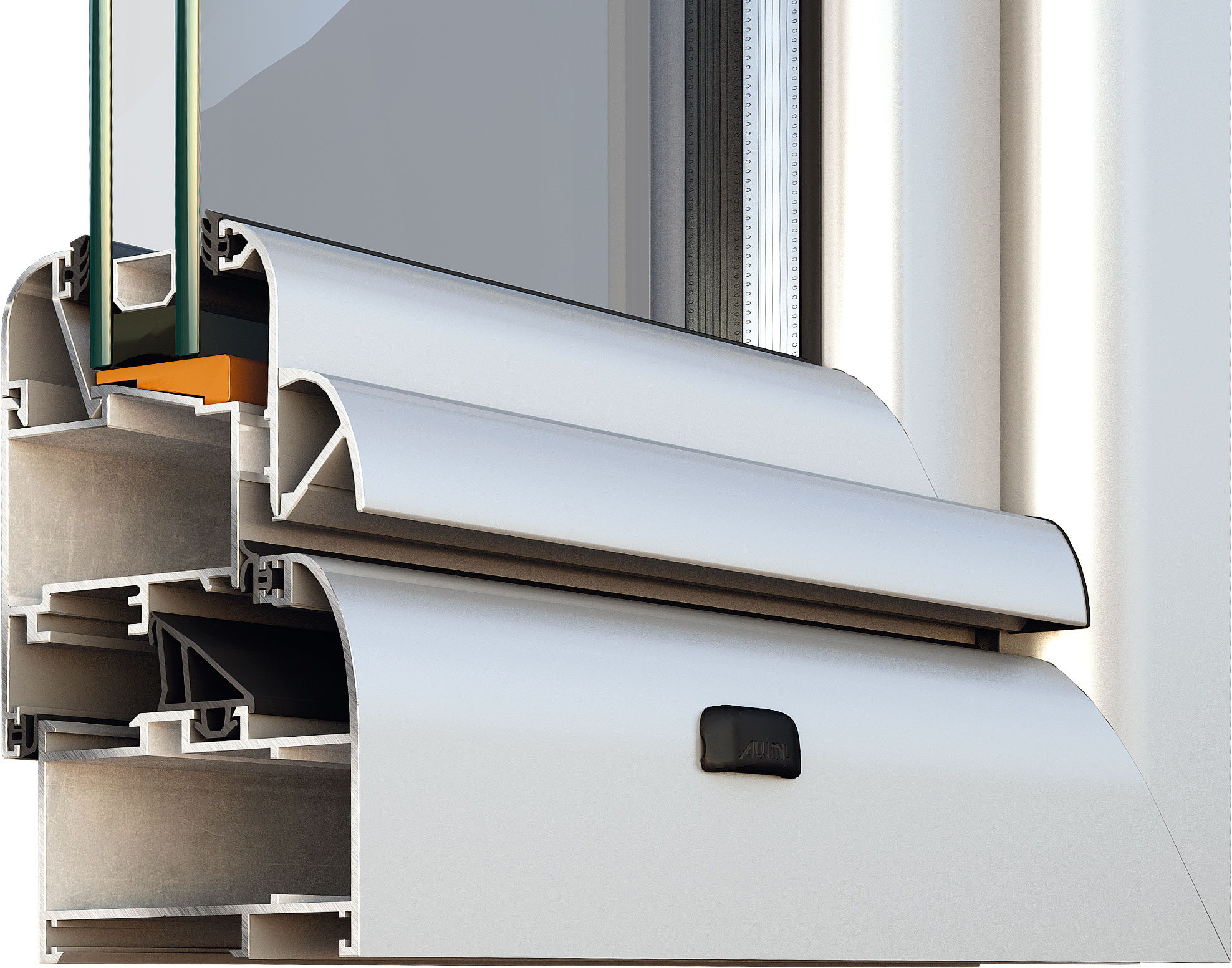

Alumil Comfort M9400

M9400 consists one of the most completed opening systems which can serve a wide range of different needs with satisfied performances.

Basic depth of system 45 mm
Great diversity of designs regarding the windows and doors’ appearance
Big variety of profiles which can be used according to the required typology and construction solution
Glass thickness up to 26mm and sash weight up to 130kg
The system has also special chamber profiles with intensive curved design in order to simulate in appearance with the timber windows (wood effect).

PROFILE CHARACTERISTICS
Frame depth	45 mm
Sash depth	52 mm
Minimum visible width	97,6 mm
Minimum visible width (Τ-profile)	67,8 mm
Sash mechanism weight limit	130 kg
Glass thickness	24 mm
Cross section thickness	1,4 - 1,6

SYSTEM CHARACTERISTICS
Type of system	Uninsulated
Uf	6,2 W/m2K
Exterior aesthetics	Flat, Curved, Classic
Glazing method	Aluseal system
Type of thermal insulation	-
Mechanism	European Groove
Typologies	Fixed Tilt & Turn Single leaf entrance door Single leaf opening shutter Double leaf opening shutter Three leaf opening shutter four leaf opening shutter Projected outwards, Folding doors, VW Aller Retour
