Alumil M20500

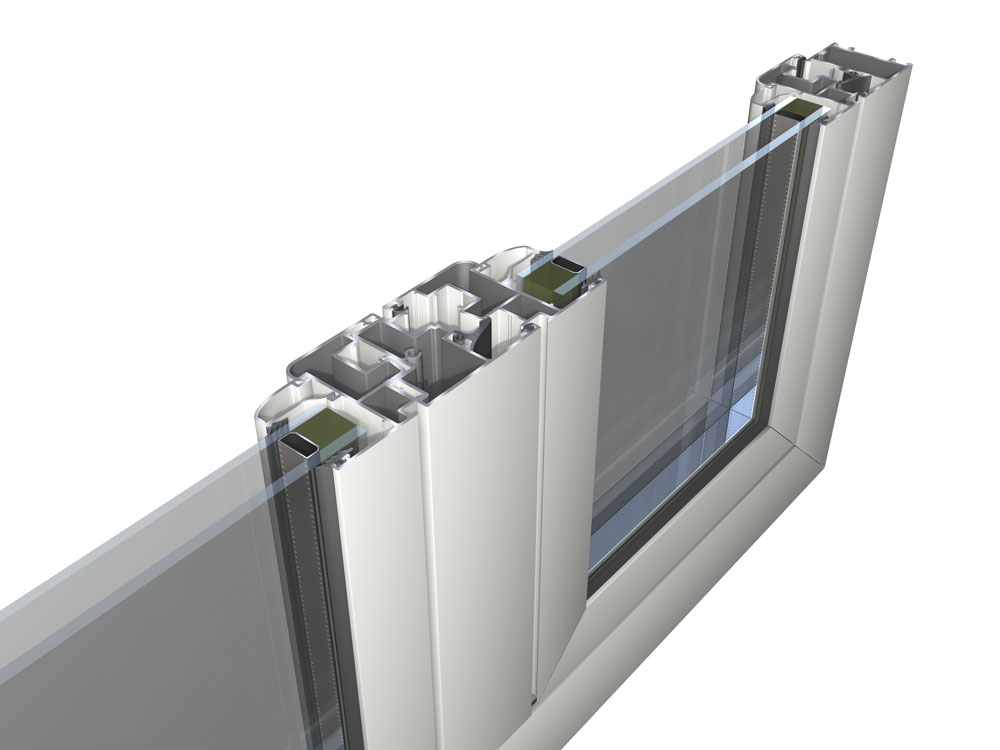

M20500 is a tilt and turned opening system without thermal break which is combined exclusively with stainless steel hardware (PVC groove).

  • Basic depth of system 50mm
  • Stainless steel mechanism of 16mm with security locking bolts (mushroom shape) can be easily installed installed with valuable time savings
  • Special reinforcement in the frame profiles for screwing and supporting the hinges
  • Appropriate distance of 4mm between the sash and the frame for continuous application of sealing gaskets even behind the hinges
  • Large variety of designs (flat, curved, classic)
  • Glass thickness up to 31mm and sash weight up to 130kg

PROFILE CHARACTERISTICS

Frame depth

50 mm

Sash depth

59 mm

Minimum visible width

106 mm

Minimum visible width (Τ-profile)

86 mm

Sash mechanism weight limit

130 Kg

Glass thickness

up to 26 mm

Cross section thickness

1,4 - 1,6



 SYSTEM CHARACTERISTICS

Type of system

Uninsulated

Uf

6,2 W/m2K

Exterior aesthetics

Flat, Classic, Curved

Glazing method

Aluseal system

Type of thermal insulation

-

Mechanism

Steel mechanism 16mm

Typologies

Fixed,
Tilt & Turn,
Single leave entrance door,
Double leave entrance door,
Projected outwards,
Folding doors,
