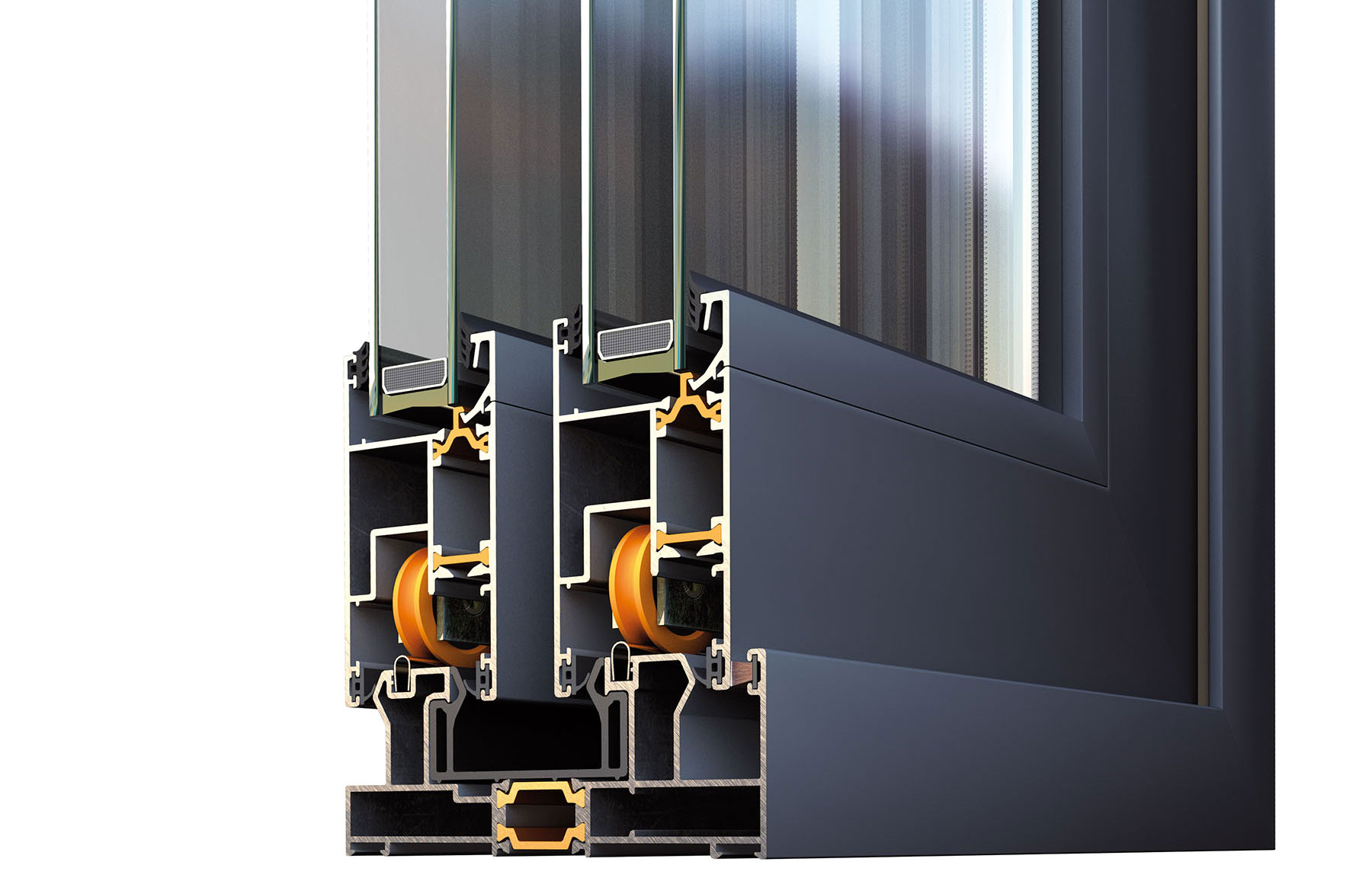

Alumil S450

S450 is a very versatile thermal insulating system for SIMPLE SLIDING orLIFT-SLIDING doors and windows. The engineering concept and the range of alternative solutions make this system a distinct choice that includes the following characteristics:

  • 45 mm sash width
  • Stainless steel rails for smooth and easy scrolling
  • high efficiency brushes (tri- fin) for sealing simple sliding constructions
  • Lift-Sliding sash up for 90 & 150 Kg with steel hardware
  • Regular sliding for 120 Kg sash
  • High thermal insulation
  • Suitable for any typology of sliding constructions, even pocket doors
  • Combines with sliding shutters and/or sliding fly screens
  • Optional higher security level by using multi locking hardware

PROFILES CHARACTERISTICS

Frame width

114,5 mm

Sash width

45 mm

Minimum visible height of construction

122,7 mm

Sash mechanism weight limit

150 Kg

Maximum glass thickness

up to 28 mm

Cross section thickness

up to 1,6


 SYSTEM CHARACTERISTICS

Type of system

Insulated

Uf

from 3,6 up to 4,4 W/m2K

Exterior aesthetics

Flat

Sliding Type

Lift- Slide

Type of thermal insulation

12 mm, 16 mm, 24 mm polyamide

Mechanism

GU Inline, GU 937, GU 939

Typologies

 Double sash horizontal sliding
Triple sash horizontal sliding
Quadruple sash meeting stile  horizontal sliding
Triple sash meeting stile  horizontal sliding
Single sash sliding pocket window
Double sash sliding pocket window
