Alumil Smartia M11000

M11000 is a versatile system for any kind of thermal insulated doors and windows, which can meet the most demanding needs, thanks to the large range of solutions and profiles. The system can create all kind of typologies regarding hinged frames and offers the following benefits:

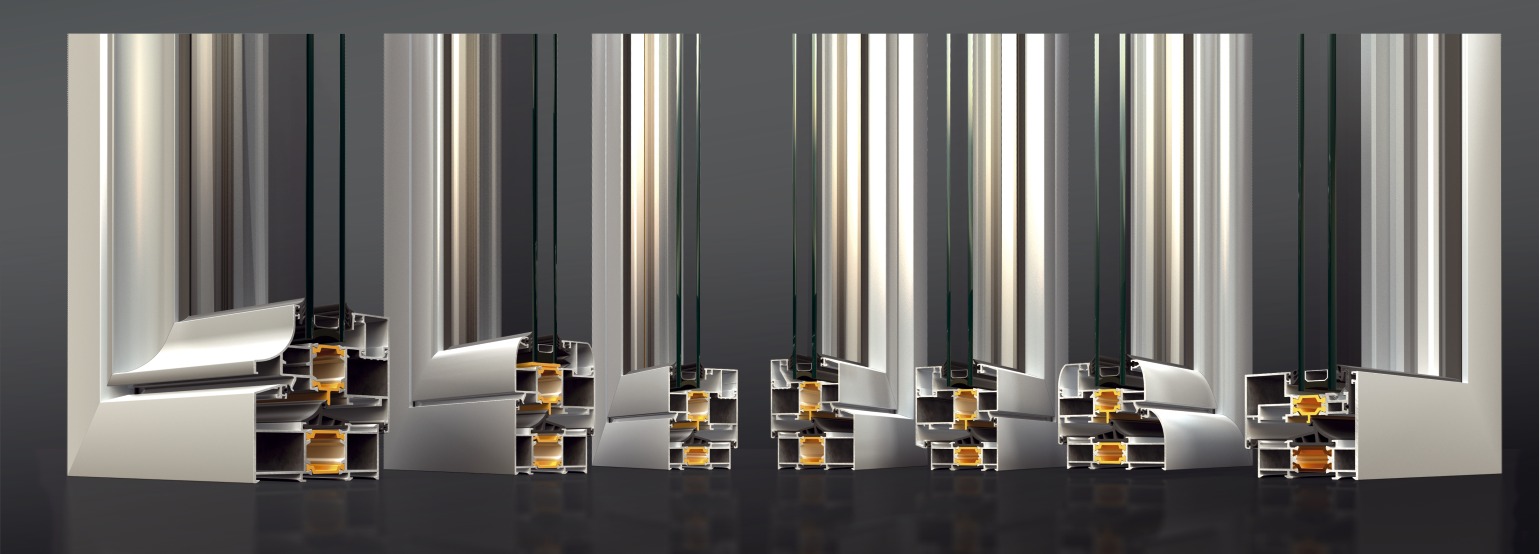

  • Variety of designs (flat, curved, inclined, classic) and alternatives for every need of architectural design with a vast collection of profiles
  • Concealed window typologies (single and double) for more natural lighting
  • Both European groove and PVC groove hardware can be applied
  • WK 3 anti-burglar protection
  • Special profiles available for any typology of entrance doors
  • Pivot windows typology

PROFILES CHARACTERISTICS

Frame depth

62,5 mm

Sash depth

70 mm

Minimum visible face width

86 mm

Minimum visible width (Τ-profile)

70 mm

Sash mechanism weight limit

130 kg

Glass thickness

up to 44 mm

Cross section thickness

1,1 - 1,6



 SYSTEM CHARACTERISTICS

Type of system

Insulated

Uf

from 2,1 up to 3,1 W/m2K

Exterior aesthetics

Flat, Inclined, Curved, Classic

Glazing method

Glazing Bead

Type of thermal insulation

24mm polyamide

Mechanism

European Groove, Pvc Steel 16 mm

Typologies

Fixed
Single & double Tilt & Turn
Single & double Tilt & Turn outwards
Single-leaf entrance door inwards & outwards
Double leaf entrance door inwards & outwards
Projected outwards
Folding doors
VW
Single, double, triple & quadruple leaf hinged shutter
