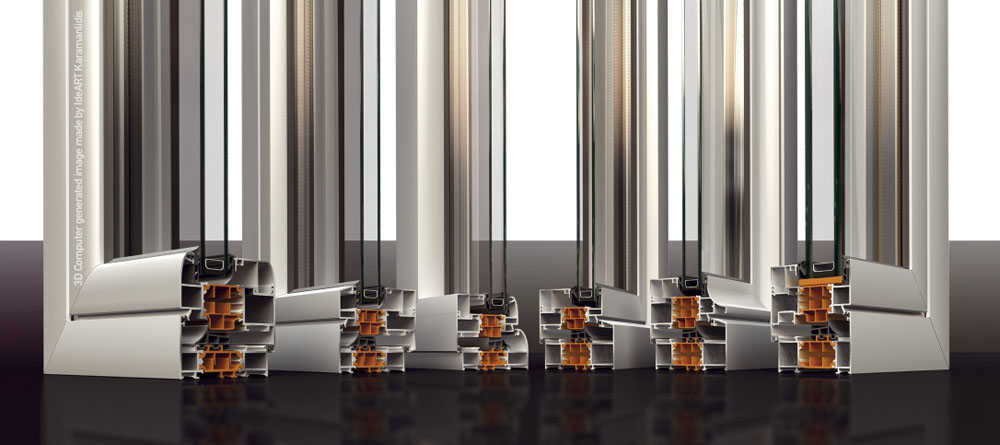

Alumil Smartia M11500

M11500 is a complete system for windows, doors, as well as for entrance doors with a high level of thermal insulation. Thanks to the vast range of profiles, the system can create all kind of typologies regarding hinged framesand offers the following advantages:

  • Variety of designs (softline, flat, inclined, classic) so as to create any kind of typology
  • Uses a concealed sash for more natural lighting
  • Tilt & turn windows not only with the standard 11mm European groove, but also with the 16 mm PVC groove for WK3 anti burglar protection
  • Creates any kind of entrance doors
  • Creates horizontal or vertical pivot windows and casement doors
  • Giving alternatives to every need of architectural design

PROFILES CHARACTERISTICS

Frame depth

76,5 mm

Sash depth

84 mm

Minimum visible face width

104,2 - 137 mm

Minimum visible width (Τ-profile)

70 mm

Sash mechanism weight limit

130kg

Glass thickness

24 up to 64 mm

Cross section thickness

1,4 - 2,0


 SYSTEM CHARACTERISTICS

Type of system

Insulated

Uf

from 1,58 to 2,12 W/m2k

Exterior aesthetics

Flat, Inclined, Curved, Classic

Glazing method

Glazing bead

Type of thermal insulation

34 - 38 mm polyamide

Mechanism

European Groove, Pvc Groove Steel 16 mm

Typologies

 Fixed light
Single and  double Tilt and Turn
Single and double Tilt and Turn outwards
Single-leaf entrance door inwards and outwards
Double leaf entrance door inwards and outwards
Projected outwards
Folding doors
VW
Single, double, triple and quadruple leaf hinged shutter
