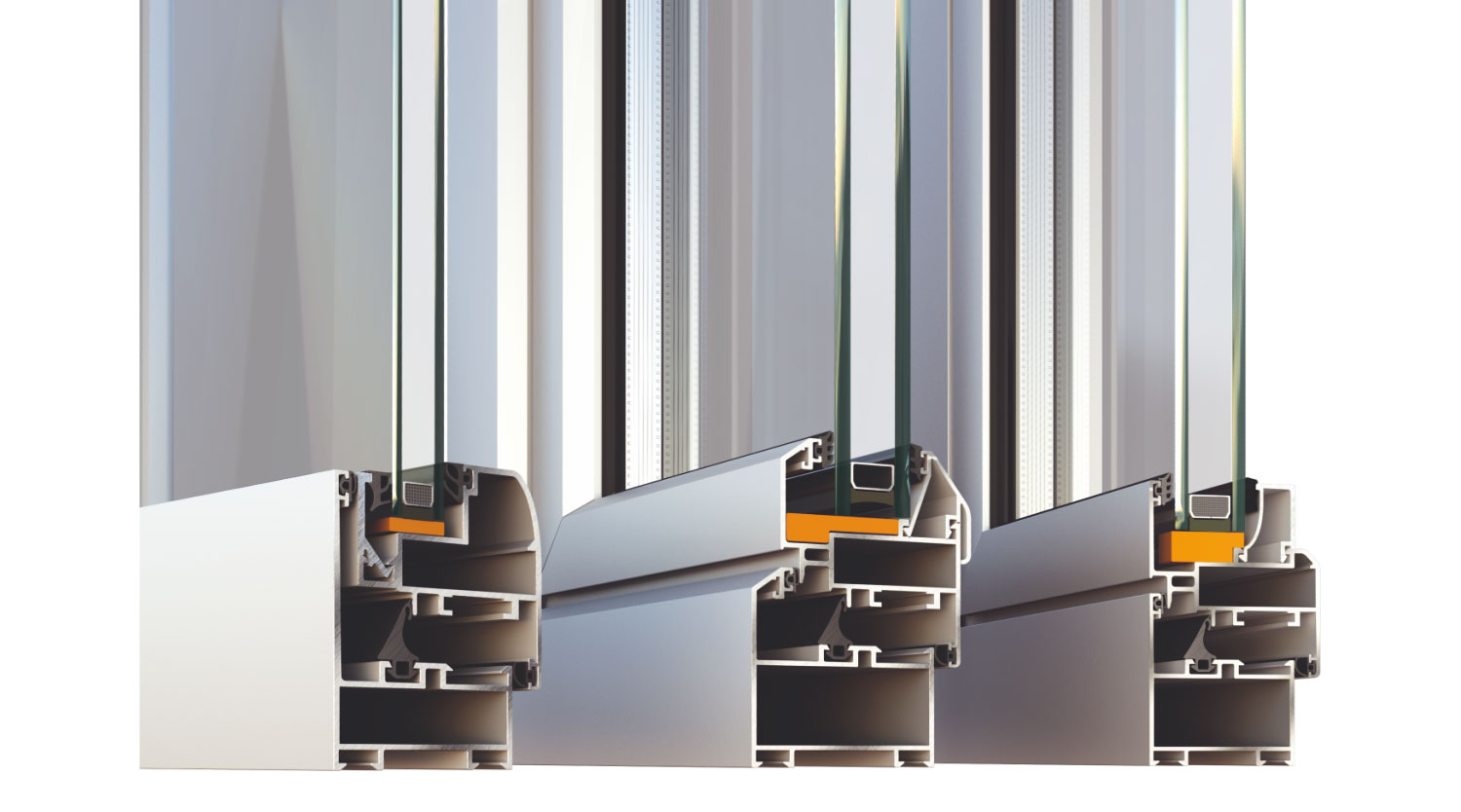

Alumil Smartia M15000

M15000 is a non thermal -break system for windows, entrance and patio doors that includes a vast range of solutions, which ensure the following characteristics:

  • Variety of designs (softline, flat, inclined, classic)
  • Tilt & turn windows and patio doors (inwards & outwards)
  • Offers concealed window typologies (single and double)
  • Anti-Panic doors
  • Smoke proof doors
  • Swing doors
  • Horizontal or vertical pivot windows and patio doors

PROFILES CHARACTERISTICS

Frame depth

50 mm

Sash depth

84 mm

Minimum visible face width

137 mm

Minimum visible width (Τ-profile)

70 mm

Sash mechanism weight limit

130 Kg

Glass thickness

24 - 40 mm

Cross section thickness

1,6 - 2,5



 SYSTEM CHARACTERISTICS

Type of system

Uninsulated

Uf

7 W/m2k

Exterior aesthetics

Flat, Curved, Inclined, Classic

Glazing method

Glazing Bead

Type of thermal insulation

34 mm polyamide

Mechanism

European Groove, Pvc Groove Steel 16 mm

Typologies

Fixed
Single & double tilt & turn window
Single & double leaf entrance door, inwards and outwards.
Single, double, triple & quadruple leaf hinged shutter
