Alumil Smartia M23000

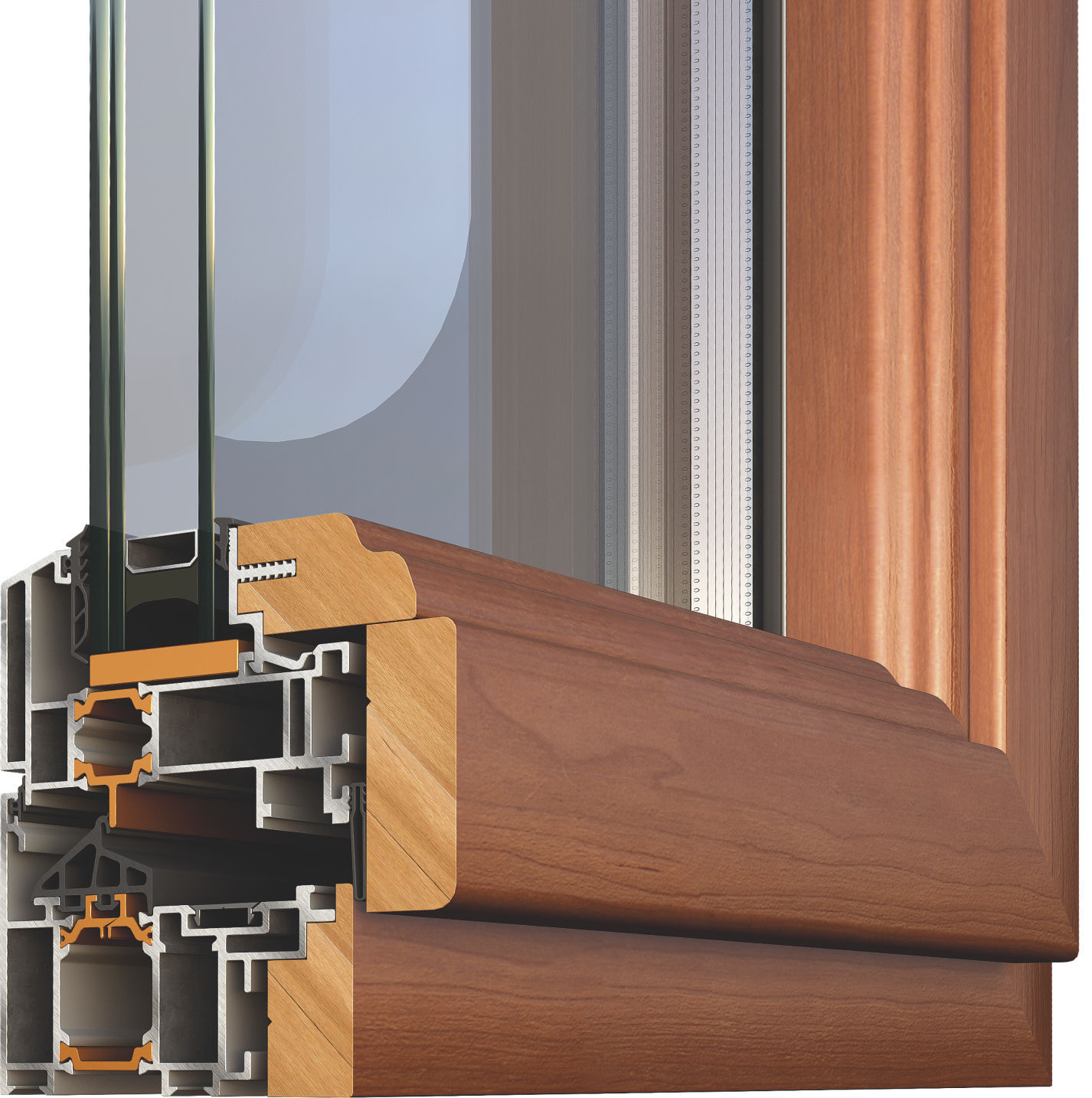

M23000 is Alumil’s exclusive proposal for thermal break aluminium systems that emphasizes on high thermal insulation and sound reduction, as well as high security standards. The system elegantly combines the top quality of aluminium with the leading aesthetic style of wood.

The connection of aluminium and wood is achieved with special clips which allow air circulation for avoiding corrosion from water condensation. M23000 offers a high security level by using a PVC groove mechanism with “mushroom” locking bolts securing into strikers. This results to an increased forced entry resistance up to 30 minutes and a WK3 certificate from the Ift Rosenheim institute. In addition, 24mm polyamides are used so as to offer an increased thermal insulation of Uf = 2,1 W/m2K. Some of the significant benefits are:


  • Combines elegantly with wood interiors
  • Tilt & turn windows with PVC groove for WK3 anti-burglar protection
  • Creates single and double tilt & turn windows, that can include fix parts


Frame depth

90 mm

Sash depth

111 mm

Minimum visible face width

117 mm

Minimum visible width (Τ-profile)

78 mm

Sash mechanism weight limit

130 Kg

Glass thickness

28 - 32 mm

Cross section thickness

1,4 - 2,6



Type of system



2,1 W/m2K

Exterior aesthetics

Flat, Classic

Glazing method

Glazing Bead

Type of thermal insulation

24 mm polyamide


Steel 16 mm PVC groove


  • Fixed
  • Tilt & Turn
