ALUMIL SMARTIA M630 PHOS

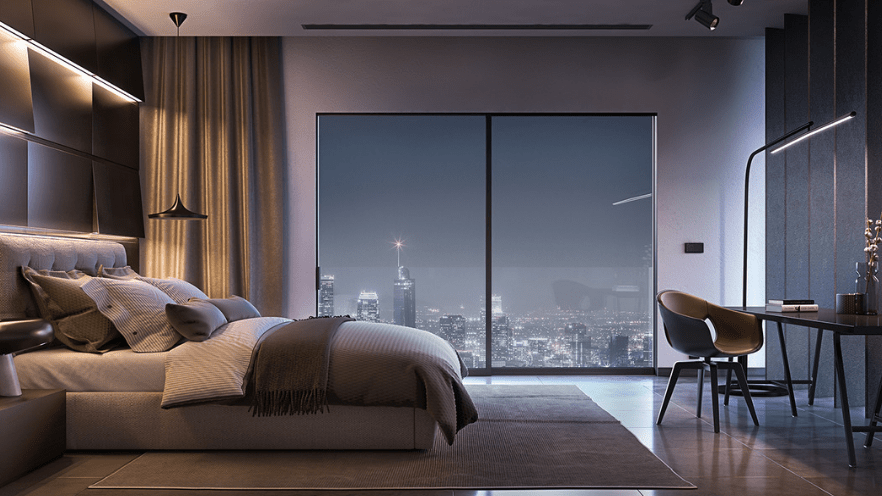

The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance. Following the “less is more” philosophy, all aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.

Advantages

Differentiating in the market through minimal systems, following the modern architectural trends

Increased clientele with minimal products ideal for hotel solutions & LSP

Easy installation & maintenance

Exceptional quality with certified performance

Wide variety of typologies

Specifications for children, the elders and people with special needs

Maximum ease of use and high functionality

Generic

WINDOW TYPES  Sliding

THERMAL INSULATION  Yes

EXTERIOR SHAPES  Flat

SURFACE TREATMENTS  Wood sublimation , Anodizing colors, all powder coating

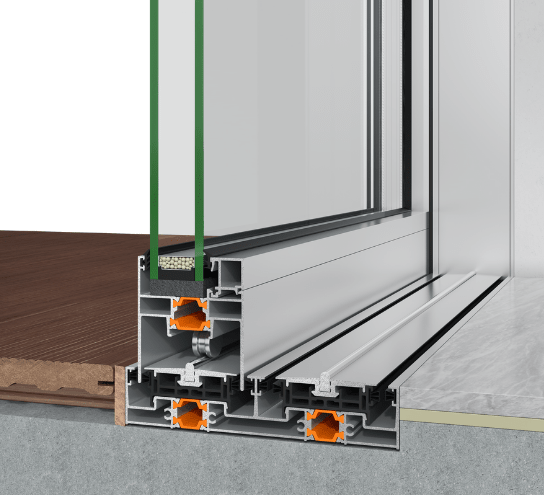

Technical Characteristics MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)  44 mm

GLAZING TYPE  Double - Triple

SEALING METHOD  Perimetrical with tri-fin brushes

MINIMUM THRESHOLD HEIGHT  32 mm

TYPE OF THERMAL INSULATION  Polyamides, PVC

Performance

UW  1,43 W/m2K

WATER TIGHTNESS  7A

AIR PERMEABILITY 3

WIND LOAD RESISTANCE C5

SOUND REDUCTION 42dB

Characteristics

SASH WEIGHT up to 250 Kg

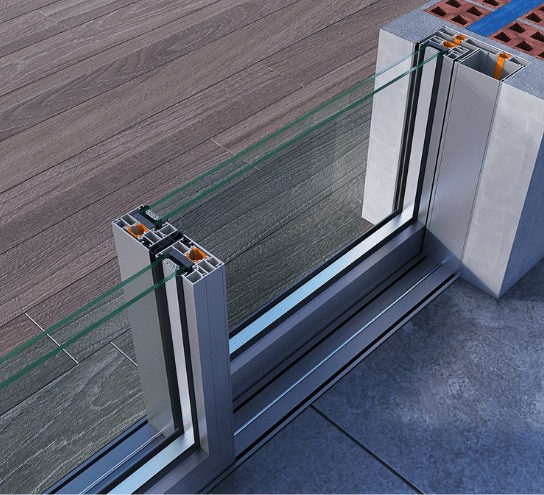

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT  Concealed profiles

MAXIMUM GLAZING THICKNESS  32 mm

TYPES OF TYPOLOGY  Horizontal sliding sashes, Meeting stile, Combinations with fixed ligths

SASH DEPTH  63 mm

Typologies

      All available typologies

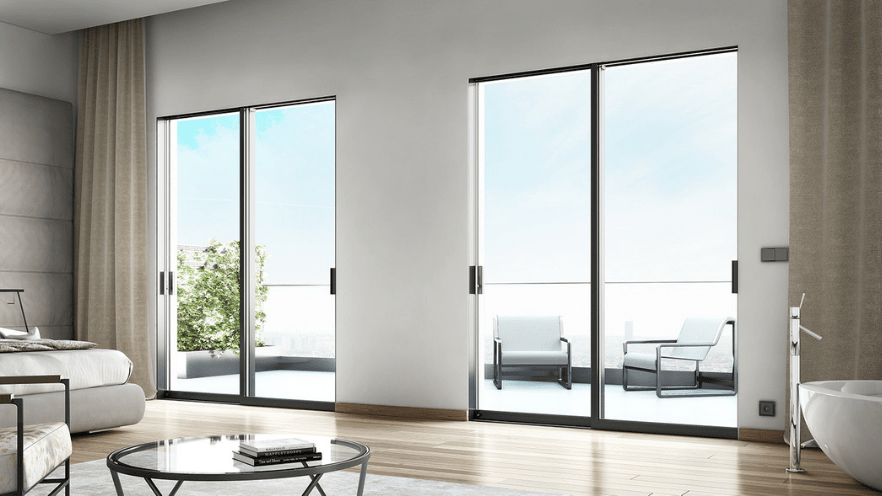

  •  Double horizontal sliding sash
  •  Single sliding sash with fixed light
  •  Triple horizontal sliding sash

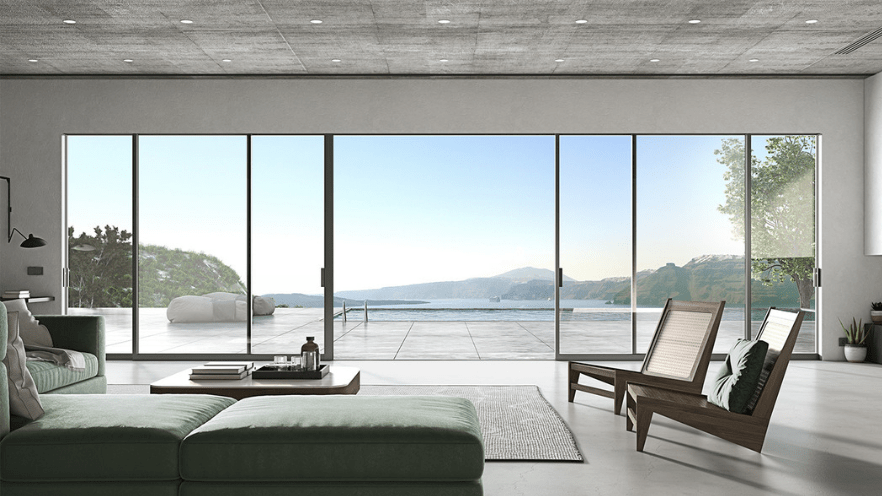

  •  Four horizontal sliding sashes with meeting stile
  •  Double horizontal sliding sash meeting stile with fixed lights
  •  Two horizontal sliding sashes with fixed light
