Alumil Smartia S560

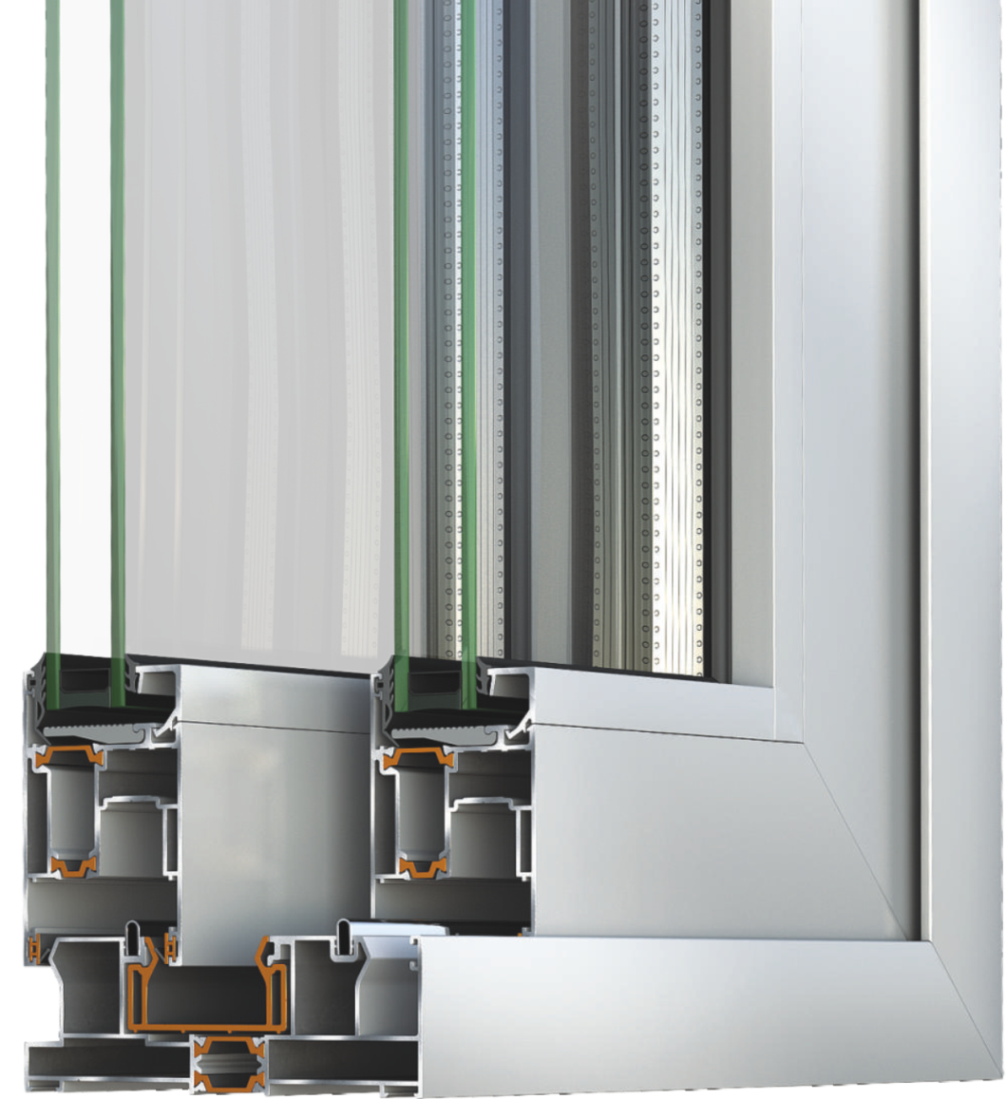

S560 is a robust lift & sliding system that provides high level of thermal insulation, flexibility in construction and is ideal for large openings. S560 offers flexibility given that it helps building windows & doors for small or very large spans. It offers quality constructions because of the profiles’ stiffness and enables both internal and external "framing" for a stronger connection of the profiles

  •  Thermally broken two chamber system with a 56mm sash width.
  •  Stainless steel guide rails.
  •  High thermal resistance Uf= 2,4 - 4,7 W/(m²*K).
  •  Flat surfaces with minimal design.
  •  Multi-chamber PVC channel profile for improved thermal performance.
  •  Large sash distance to hook profile for improved stability and thermal performance.
  •  Multi-chamber PVC hook profile for improved thermal performance.
  •  End cap for hook profile with a spring and weather seals for improved weather performance.
  •  Multi-point locking available.
  •  Central weather seals with thermal plastic and expanded foam profiles covered with a membrane for improved sliding performance.
  •  Glazing thickness 28 up to 40mm for improved sound and thermal insulation.



PROFILES CHARACTERISTICS

Frame width

128 mm

Sash width

56 mm

Minimum visible height of construction

122,5 mm

Frame height(rail)

45 mm

Sash height

86 mm

Sash mechanism weight limit

90,150 and 300 Kg

Maximum glass thickness

From 24 to 38mm

Cross section thickness

up to 2 mm


 SYSTEM CHARACTERISTICS

Type of system

Insulated

Uf

from 2,2 to 4,6 W/ m2K

Exterior aesthetics

Flat

Sliding Type

Slide

Type of thermal insulation

24mm polyamide into the frame,

16-24 mm into the sash

Mechanism

GU 939, 937, 934

Typologies
  • Double and triple horizontal sliding sash
  • Four sash horizontal meeting stile sliding doors
  • Sliding doors with fixed lights
  • Sliding doors with fixed lights right & left and uplifting sash in the middle
