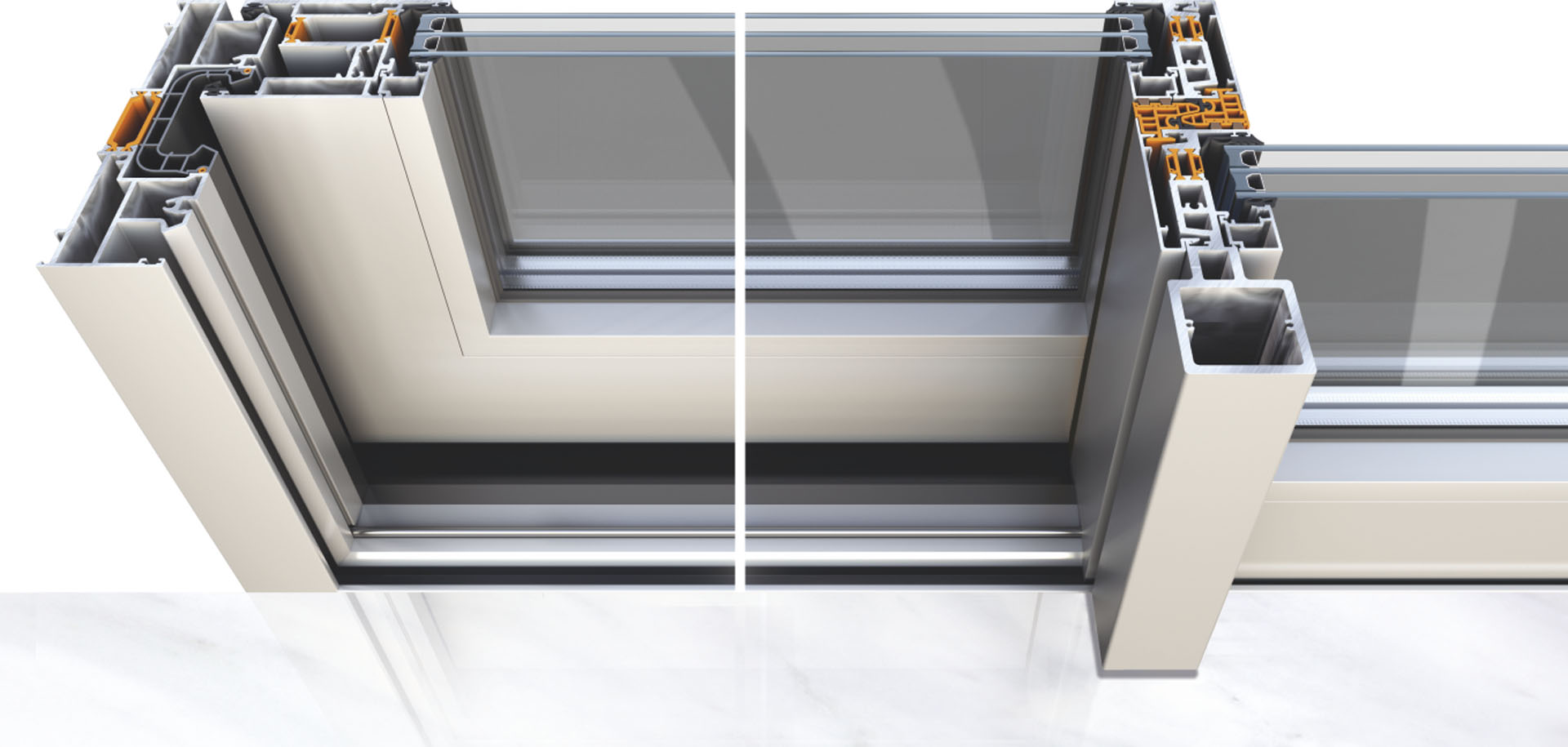

Alumil Supreme S700

S700 is the top-ranked Lift & Slide system that represents the new negation of Alumil advanced systems. This system has been created to fully exploit wide spans with its minimal design alongside with the state-of-the-art technology. S700 distinctive and unique characteristics clearly distinguish it from the competition as it offers:

  • Narrow sash face width of only 84 mm
  • Interlocking face width of only 47mm for double sash sliding doors, for maximum visibility, and door height up to 3,00 m
  • Low thermal break threshold profile
  • Smart water evacuation system, perfect for heavy rainfalls
  • Smart drainage device under the interlocking profiles guarantees water tightness
  • Special 24mm anti-distortion polyamides for avoiding the banana effect, due to high temperature differences between indoors and outdoors
  • Very high thermal insulation (Uw up to 1,3 W/m2K)
  • Can also be a classic lift & sliding with the same frame profile all around and with the same performances



Frame width

168,5 mm

Sash width

70 mm

Minimum visible height of construction

115,2 mm

Sash mechanism weight limit

400 Kg

Maximum glass thickness

50 mm

Cross section thickness

up to 2,2



Type of system



2 W/m2K

Exterior aesthetics


Sliding Type

Lift - Sliding

Type of thermal insulation

Special 24 mm anti-distortion polyamides


GU 934


Double horizontal sliding sash
Triple horizontal sliding sash
Multiple horizontal sliding sashes
Quadruple meeting stile horizontal sliding sash
Corner construction with double horizontal sliding sash
Corner construction with pocket windows
Single pocket window
