Alumil Supreme SD77

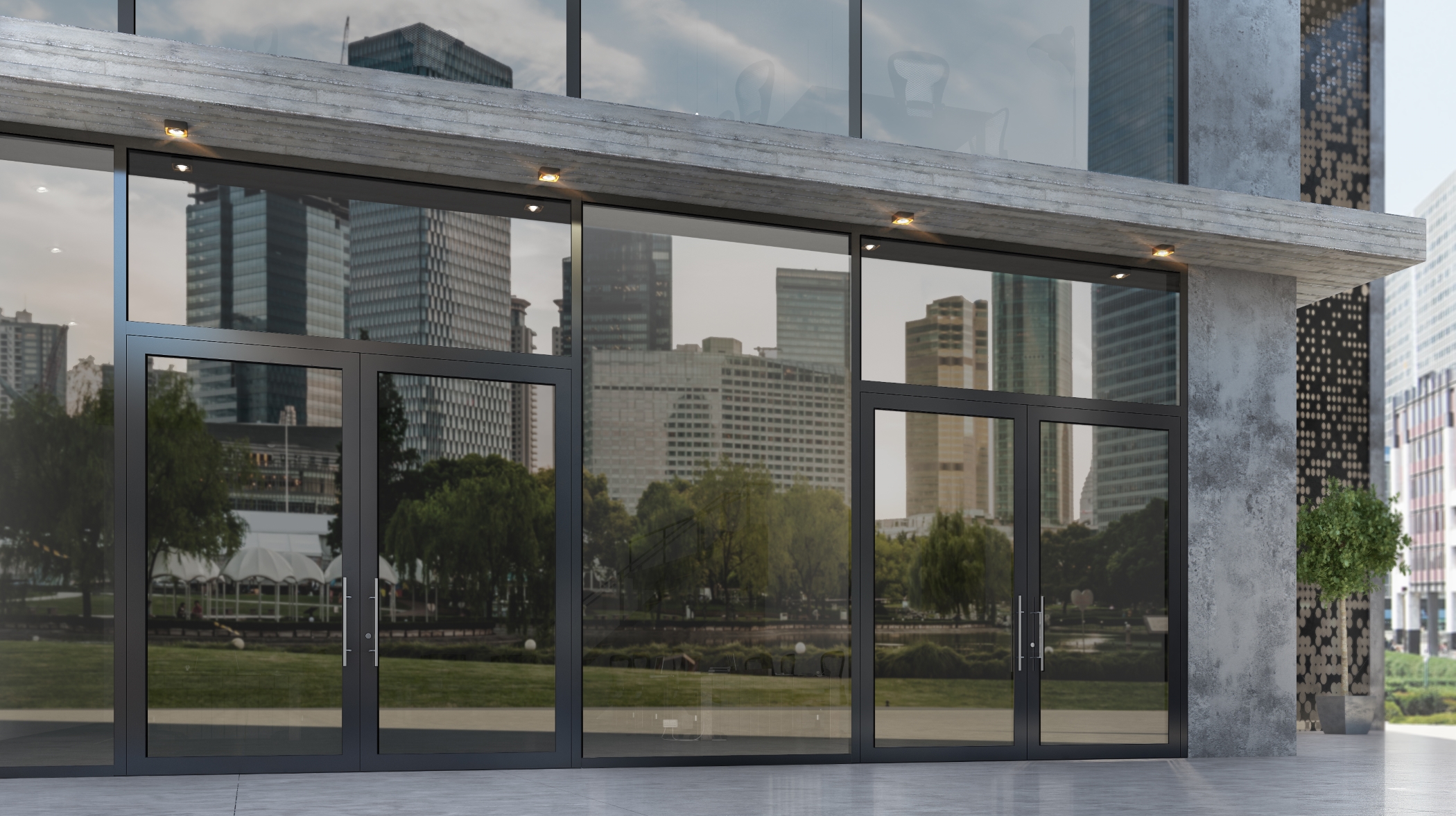

SUPREME SD77 is ALUMIL’s new innovative entrance door with unique form and functions designed to provide efficiency, durability and fitness. SD77 offers flexibility in design and with its multiple typologies provides endless possibilities to fit every structural span required. With its modern, sleek flat designs and aesthetic touches has the ability to be combined with either aluminum panels or grazing infills without sacrificing its finesse. A true technological advancement offering optimum performance and sustainable building.

  • Sleek look in the system’s 77mm depth.
  • Low threshold of only 22mm height with slip resistant design.
  • High level of thermal insulation and water tightness.
  • Designed to fit different solutions.
  • Wide variety of security locks and hinges (concealed, barrel or surface mounted).
  • Ideal entrance door for S77 window series





Frame depth
   77 mm
Sash depth
   77 mm
Minimum visible width
   154,5 mm
Minimum visible width (Τ-Profile)
   76 mm
Sash mechanism weight limit
   180 Kg
Glass thickness
   up to 68 mm
Cross section thickness
   1,3 up to 2 mm

 SYSTEM CHARACTERISTICS
Type of system
 Insulated
UD 0,7 W/m2K
Exterior aesthetics
 Flat
Glazing method
 Aluseal system
Type of thermal insulation
 40 mm polyamide
Mechanism Perimetrical locking mechanism
Typologies
  • Single leaf door
  • Double leaf door
  • Single leaf door with insulation panel
  • Double leaf door with insulation panel
  • Single leaf door with insulation panel and fixed light
  • Single leaf door with insulation panel, fanlight and fixed lights
  • Single leaf door with fixed light
  • Single leaf door with fanlight and fixed lights
