Alumil Supreme SF85 Insulated Folding Doors

Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width

Amazingly reduced sight lines which contributes to the overall minimal design

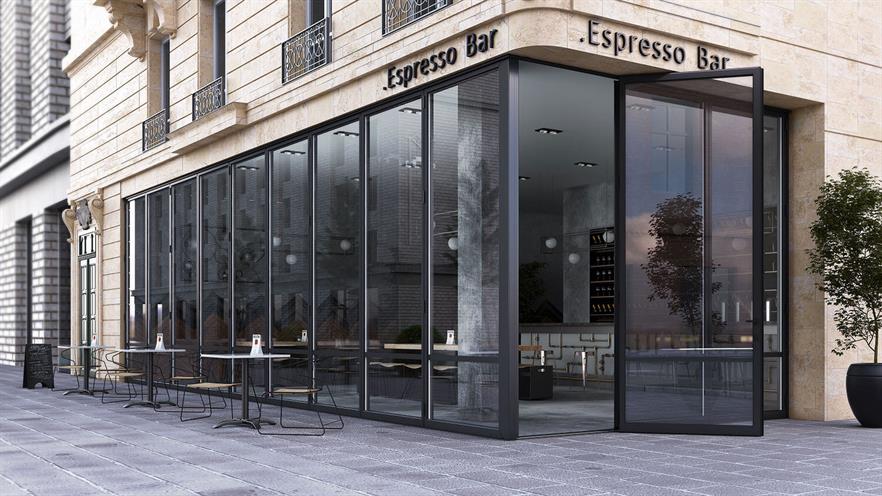

Extensive variety of solutions, with odd and even number of vents, corner construction, semi-structural vent version, inwards and outwards opening

Extreme performance in terms of air permeability, wind load resistance and water tightness

Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)

Enhanced levels of security and burglar protection, meeting all sector security standards

Smooth operation and long-lasting flawless functionality

Generic

  • AESTHETICS:Μinimal, relatively low sight line
  • THERMAL INSULATION: Yes
  • APPLICATIONS; Residential with 1.5m panel width, commercial with 4.0m panel height, high-end projects
  • PANEL: Αluminium framed panel, semi-structural panel

Technical Characteristics

  • SASH WIDTH: 85 mm
  • GLAZING: 21-58mm
  • POLYAMIDE: Double 40mm
  • EXTRA INSULATING FITTINGS:Alumil energy bar insulation and PE insulation foam
  • MAIN GASKET: Single from co-extruded EPDM and foam
  • LOCKING: Quadruple locking latches
  • VISIBLE ALUMINIUM: 105mm
  • ΜAXIMUM WEIGHT: 200Kg/ vent
  • MAXIMUM HEIGHT: 4,0 m
  • MAXIMUM PANEL WIDTH: 1,5 m

Performance

  • WATER TIGHTNESS: class 7Α,IFT
  • AIR PERMEABILITY: class 4, IFT
  • WIND LOAD RESISTANCE: class C3/B3, IFT
  • BURGLAR RESISTANCE:: 1.1 W/m²K, IFT
  • PANEL TYPE: bottom slide
