Aluminco SL 230 Sliding

A true achievement of design in sliding systems. The contemporary lines, the smooth and quiet operation of this sliding system, make it a favourite amongst architects and home owners.

This system offers maximum security with the use of multiple locks. An ideal combination of sash windows with a fixed or opening frame.

Advantages:

  • Strong rail connection for the construction of overlapping frames with split connection angles.

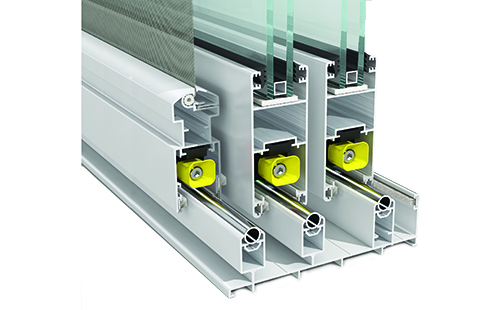

  • Normal, noiseless movement of the sliding sashes on a stainless built-in rail that ensures long-life and avoidance of color fading.
  • Rebate for two-sheet sliding sashes without visible taps.
  • A particularly strong and distinctive internal stop for two-sheet sliding sashes.
  • Distribution of the sliding door centre of gravity on symmetrical rails for minimizing friction.
  • Sash with a hidden cap of the support rubber for mosquito net.
  • Excellent aesthetic result.
  • Cover strips connected with split angles, ensuring a perfect connection without joints, even on uneven walls.
  • Absolute impermeability in all joints.
  • Easy construction and installation.
  • Sash width: 37.6mm
  • Dimensions of double overlapping rail: height 35mm & width 95,6mm
  • Dimensions of built-in rail on glass & window screen & shutter: height 35mm – width 130mm
  • Glazing up to 25mm
