Elvial EL 6700 Ι² Slide Multilock

Main characteristics

Available in sliding variant but also in lift & sliding variant for a better tightness.
Firm system with elegant, frugal shape
Thermal transmittance rate Uf= 3,7 W/(m2*K)
Ideal for large frames (width up to 4 m for double sash frames)
High level of thermal insulation thanks to the use of glass-fiber reinforced polyamide of 24mm, 22mm & 18mm
Specially designed sealing gaskets for door frames, hook dowels and dowels for double-sash frames.
Smooth sliding thanks to the use of an inox track
Maximum glazing thickness 24mm.
Available only in linear shape.

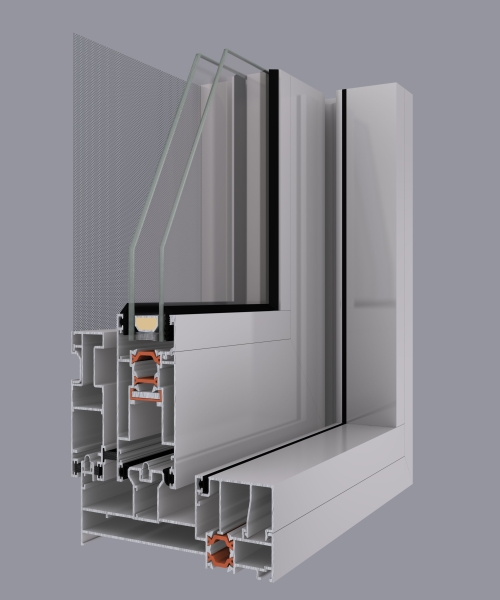

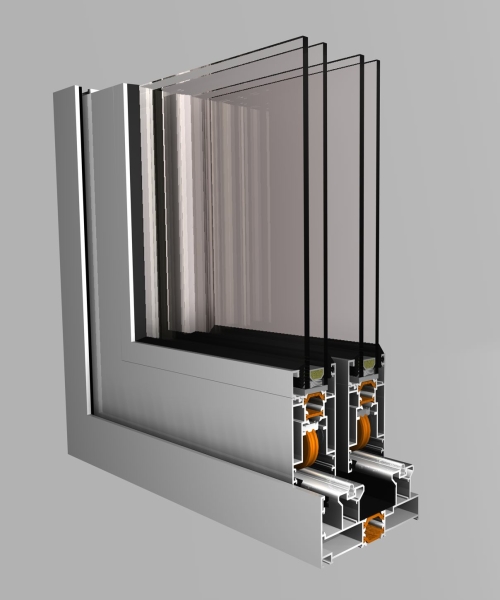

PROFILES’ DIMENSIONS CHARACTERISTICS

Frame dimensions	Width 50,9 mm to 174,1 mm - Height 47 mm
Sash dimensions	Width 46 mm – Height 85,5 mm

CONSTRUCTIONS’ DIMENSIONS SPECIFICATIONS

Maximum sash dimensions for regular sliding frame	Width 2000 mm - Height 2350 mm
Minimum sash dimensions for regular sliding frame	Width 300 mm - Height 400 mm
Maximum sash weight for regular sliding frame	90 Kg
Glass thickness	14 mm, 24 mm & 27 mm

CERTIFICATIONS (IFT ROSENHEIM)

Profiles Thermal Transmittance Rate (Uf)

3.7 W/(m2*K)

The design, production process and quality control of all ELVIAL profiles are certified according to the European standard ISO 9001:2008.
ELVIAL coating process is certified and conducted in accordance with the European standard QUALICOAT.
